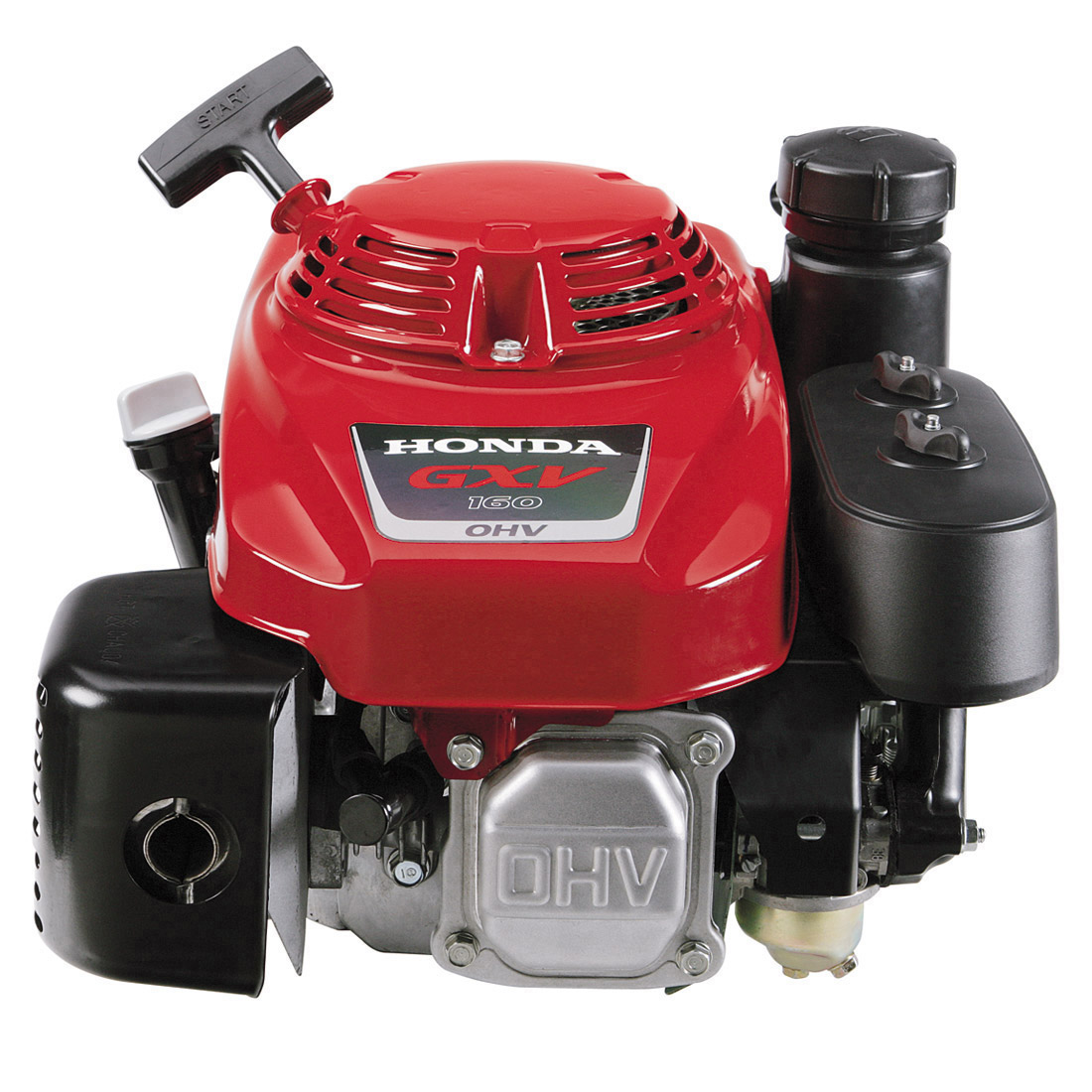

Honda GXV160

Honda GXV160

Contact us for price

Stock status: Call Store for Availability

GXV160

Quality and performance come standard.

Professionals rely on the GXV160 to deliver reliable, easy starting, fuel efficient performance, day in and day out.

Common Applications
  • Lawn mowers
  • Commercial lawn and garden equipment
  • Forestry equipment
  • Construction / industrial equipment
  • Agricultural equipment
Call Us Now

Specs

SPECIFICATIONS

GXV160
Engine Type Air-cooled 4-stroke OHV
Bore x Stroke 68 X 45 mm
Displacement 163 cm3
Net Power Output* 4.3 hp (3.2 kW) @ 3,600 rpm
Net Torque 7.1 lb-ft (9.6 Nm) @ 2,500 rpm
PTO Shaft Rotation Counterclockwise (from PTO shaft side)
Compression Ratio 8.0:1
Carburetor Float Type
Ignition System Transistorized magneto
Starting System Recoil
Lubrication System Splash
Governor System Centrifugal Mechanical
Air Cleaner Dual element
Oil Capacity 0.69 US qt (0.65l)
Fuel Tank Capacity 1.5 U.S. qts (1.4 liters)
Fuel Unleaded 86 octane or higher
Dry Weight 32 lb (14.5 kg)
WARNING: California Prop 65 Info

DIMENSIONS

GXV160
Length (min) 16.3" (415mm)
Width (min) 14.1" (359mm)
Height (min) 13.9" (354mm)

PTO

GXV160
LM Straight shaft View Details
N1 Straight shaft View Details
N5 Straight shaft View Details
