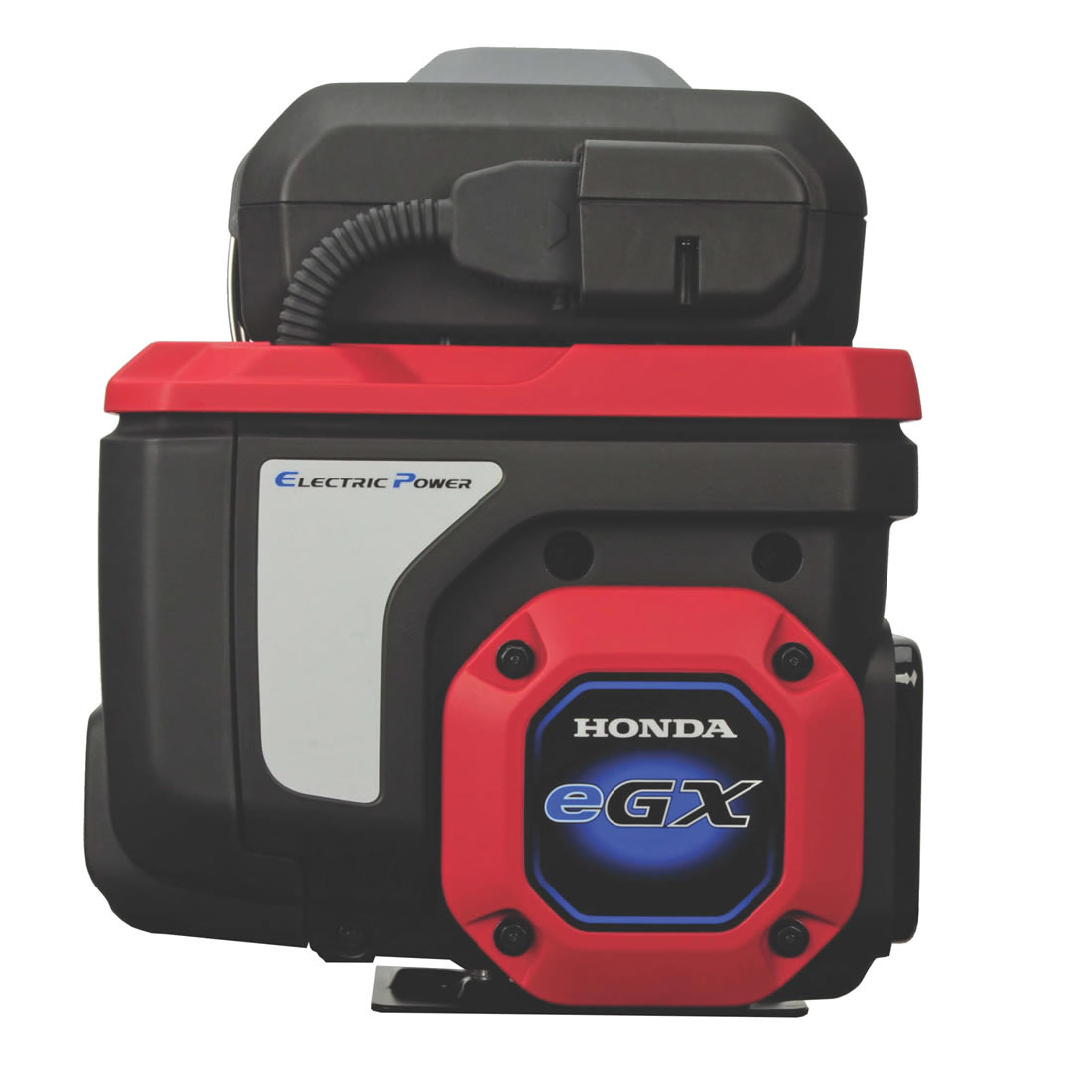

Honda GXE2.0H

Honda GXE2.0H

Contact us for price

Stock status: Call Store for Availability

GXE2.0H

Efficient, Convenient, and Friendly Operation

The GXE2.0H is a high-efficiency and high-performance advanced electrified power unit that provides power output similar to gasoline engines with the convenience of battery power and friendly features of low noise, vibration, and indoor useability.

Common Applications
  • Concrete Trowel
  • Plate Compactor
  • Reel Mower
Call Us Now

Specs

SPECIFICATIONS

GXE2.0H
Motor Type Three phase brushless DC
Cooling System Forced Air
Net Power Output* 2.4 HP (1.8 kW) @ 3,600 rpm
Net Torque 3.5 lb-ft (4.8 Nm) @ 3,600 rpm
PTO Shaft Rotation Counterclockwise (from PTO shaft side)
Motor RPM 3600
Controller Type Three Phase Square Wave
Controller Maximum Output 80A
Control System PWM ( Pulse Width Modulation)
Brake Type Regenerative
Voltage 72v
Operating Temperature (°C / ° F) 15 to 40 degrees Celsius / 5 to 104 degrees Fahrenheit
Battery Type Li-ion 18650 cell base
Battery Capacity 748Wh
Battery Charge Temperature (°C / ° F) 5 to 30 degrees Celsius / 41 to 86 degrees Fahrenheit
Weight w/battery 55.1 lbs. (25 kg) w/o SW Box
WARNING: California Prop 65 Info

DIMENSIONS

GXE2.0H
Length w/battery (S type shaft) 11.8" (294mm)
Width w/battery (S type shaft) 13.9" (353mm)
Height w/battery (S type shaft) 16.5" (420mm)

PTO

GXE2.0H
S type Straight shaft View Details
Q type Straight shaft View Details
