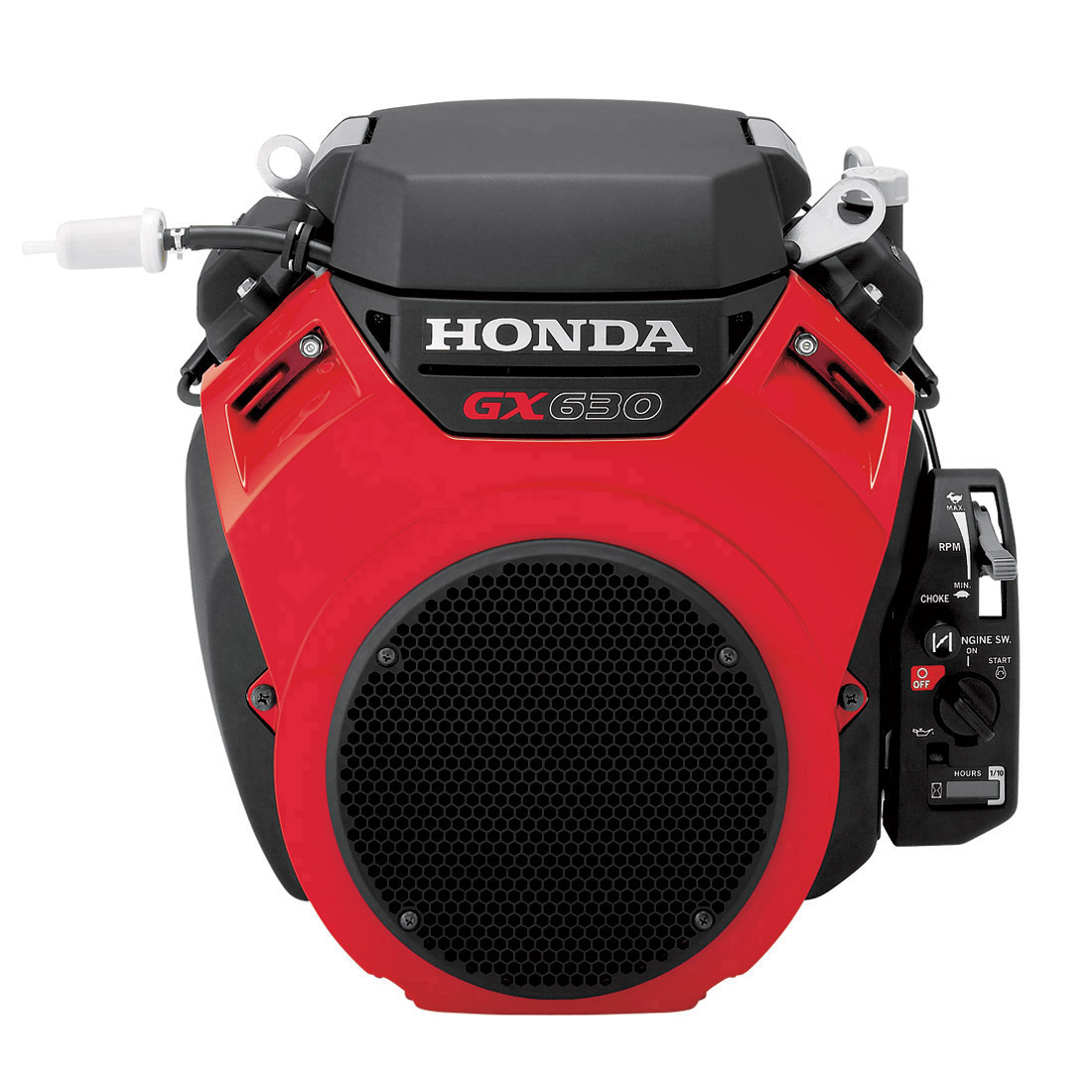

Honda GX630/690

Contact us for price

Stock status: Call Store for Availability

Honda V-twin engines offer high horsepower, great adaptability, quiet operation, and excellent fuel efficiency. Not to mention a 3-year warranty.

Call Us Now

Specs

	GX630	GX690
Engine Type	Air-cooled 4-stroke OHV	Air-cooled 4-stroke OHV
Bore x Stroke	78 X 72 mm	78 X 72 mm
Displacement	688 cm3	688 cm3
Net Power Output*	20.8 hp (15.5 kW) @ 3,600 rpm	22.1 hp (16.5 kW) @ 3,600 rpm
Net Torque	35.6 lb-ft (48.3 Nm) @ 2,500 rpm	35.6 lb-ft (48.3 Nm) @ 2,500 rpm
PTO Shaft Rotation	Counterclockwise (from PTO shaft side)	Counterclockwise (from PTO shaft side)
Compression Ratio	9.3:1	9.3:1
Lamp/Charge coil options	2.7A, 17A, 26A	2.7A, 17A, 26A
Carburetor	Horizontal type, two barrel butterfly valve, internal vent	Horizontal type, two barrel butterfly valve, internal vent
Ignition System	Digital CDI with variable ignition timing	Digital CDI with variable ignition timing
Starting System	Electric	Electric
Lubrication System	Forced lubrication	Forced lubrication
Governor System	Mechanical	Mechanical
Air Cleaner	Dual element	Dual element
Oil Capacity	2.1 US qt (2.0l)	2.1 US qt (2.0l)
Fuel	Unleaded 86 octane or higher	Unleaded 86 octane or higher
Dry Weight	96.8 lb (44 kg)	96.8 lb (44 kg)
