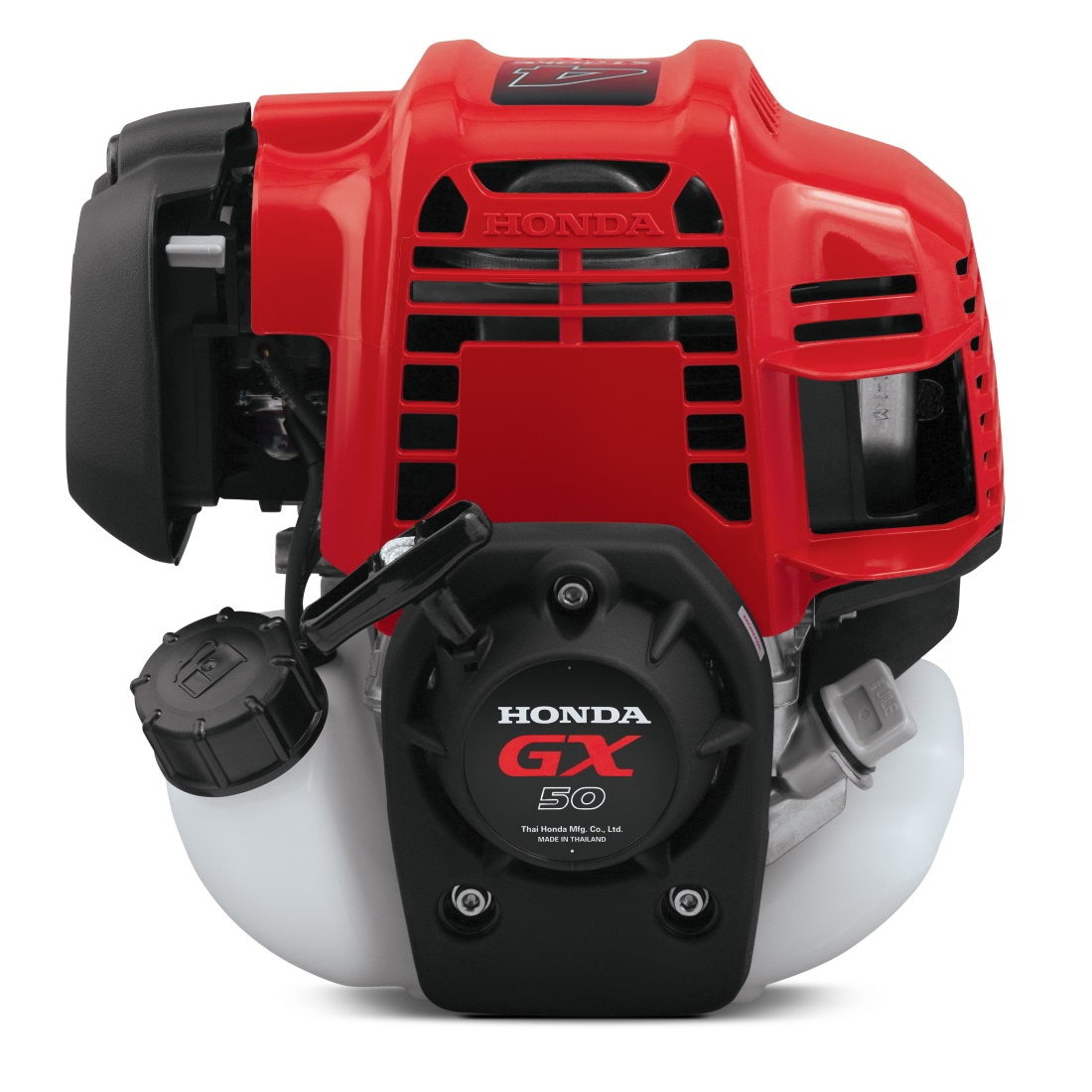

Honda GX50

Honda GX50

Contact us for price

Stock status: Call Store for Availability

GX50

Make light work of hard tasks.

Honda’s GX50 general-purpose engine expands our Mini-Four Stroke lineup with a model that offers high output and light weight—extending into more demanding commercial and rental applications with excellent fuel efficiency. Featuring a compact and lightweight design, the GX50 is the first Honda four-stroke model in the two-horsepower class that is 360-degrees inclinable during operation and storage.

Common Applications
  • Commercial lawn and garden equipment
  • Tillers / cultivators
  • Construction / industrial equipment
  • Agricultural equipment
  • Water pumps
Call Us Now

Specs

SPECIFICATIONS

GX50
Engine Type Air-cooled 4-stroke OHC
Bore x Stroke 43 mm x 33 mm
Displacement 47.9 cm3
Net Power Output* 2.0 hp (1.47 kW) @ 7,000 rpm
Net Torque 1.6 lb-ft (2.2 Nm) @ 5,000 rpm
PTO Shaft Rotation Counterclockwise (from PTO shaft side)
Compression Ratio 8.0:1
Carburetor Diaphragm-type (overflow return)
Ignition System Transistorized magneto
Starting System Recoil
Lubrication System Crankcase pressure–driven
Governor System NA
Air Cleaner Dry Paper
Oil Capacity 4.4 US oz (130cc)
Fuel Unleaded 86 octane or higher
Fuel Tank Capacity 0.67 U.S. qt (.63 liter)
Dry Weight 9.1 lb (4.1 kg)
WARNING: California Prop 65 Info

DIMENSIONS

GX50
Length (min) 7.8" (199 mm)
Width (min) 10.2" (260 mm)
Height (min) 10.4" (263 mm)
