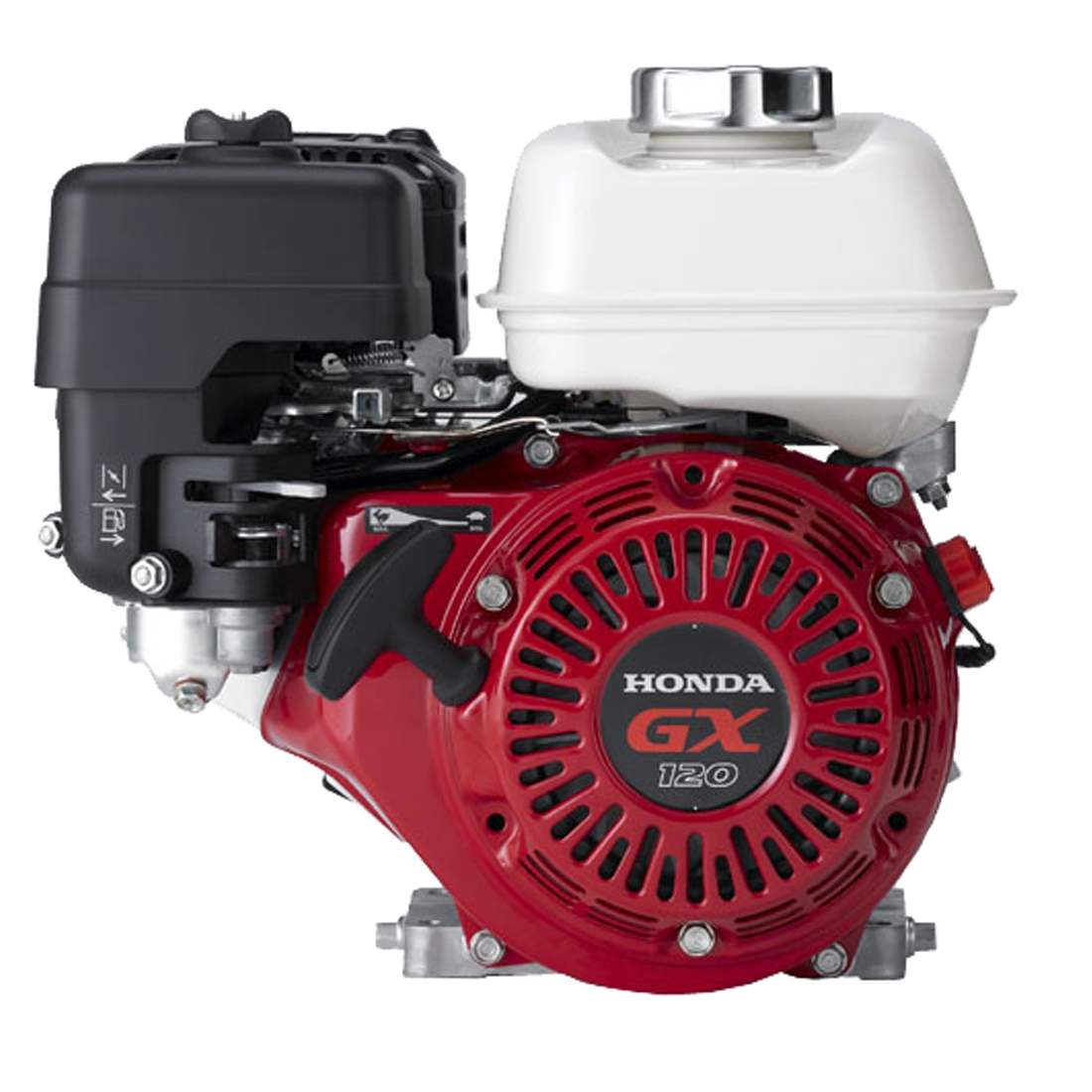

Honda GX120/160/200

Honda GX120/160/200

Contact us for price

Stock status: Call Store for Availability

GX120/160/200

Quality and performance come standard.

Honda’s GX series engines are legendary for superior reliability and performance. And there’s no doubt about it: the GX120, 160, and 200 live up to the legend. Low noise levels, low vibration, and low emissions – without sacrificing power output or performance.

Common Applications
  • Commercial lawn and garden equipment
  • Tillers / cultivators
  • Generators
  • Construction / industrial equipment
  • Agricultural equipment
  • Water pumps
  • Pressure Washers
  • Forestry equipment
Call Us Now

Specs

SPECIFICATIONS

GX120

GX160

GX200
Engine Type Air-cooled 4-stroke OHV Air-cooled 4-stroke OHV Air-cooled 4-stroke OHV
Bore x Stroke 60 X 43.5 mm 68 X 45 mm 68 X 54 mm
Displacement 122 cm3 163 cm3 196 cm3
Net Power Output* 3.2 hp (2.4 kW) @ 3,600 rpm 4.8 hp (3.6 kW) @ 3,600 rpm 5.8 hp (4.3 kW) @ 3,600 rpm
Net Torque 5.5 lb-ft (7.3 Nm) @ 2,500 rpm 7.6 lb-ft (10.3 Nm) @ 2,500 rpm 9.1 lb-ft (12.4 Nm) @ 2,500 rpm
PTO Shaft Rotation Counterclockwise (from PTO shaft side) Counterclockwise (from PTO shaft side) Counterclockwise (from PTO shaft side)
Compression Ratio 8.3:1 9.0 : 1 8.5:1
Lamp/Charge coil options 25W, 50W 50W / 1A, 7A, 18A 25W, 50W / 1A, 7A, 18A
Carburetor Butterfly Butterfly Butterfly
Ignition System Transistorized magneto Transistorized magneto Transistorized magneto
Starting System Recoil Starter Recoil Starter Recoil Starter
Lubrication System Splash Splash Splash
Governor System Mechanical Centrifugal Mechanical Mechanical
Air Cleaner Dual Element Dual Element Dual element
Oil Capacity 0.59 US qt. (0.56 L) 0.61 US qt. (0.58 L) 0.63 US qt (0.6l)
Fuel Tank Capacity 2.1 U.S. qts (2.0 liters) 3.3 U.S. qts (3.1 liters) 3.3 U.S. qts (3.1 liters)
Fuel Unleaded 86 octane or higher Unleaded 86 octane or higher Unleaded 86 octane or higher
Dry Weight 28.9 lbs. (13.2 kg) 33 lbs. (15.1 kg) 35 lbs. (16.1 kg)
WARNING: California Prop 65 Info

DIMENSIONS

GX120

GX160

GX200
Length (min) 11.7” (297 mm) 12.2" (312 mm) 12.6" (321mm)
Width (min) 13.6” (346 mm) 14.3" (362 mm) 14.8" (376mm)
Height (min) 13.0” (329 mm) 13.6" (346 mm) 13.6” (346 mm)

PTO

GX120

GX160

GX200
L type Reduction type PTO View Details Reduction type PTO View Details Reduction type PTO View Details
Q type Straight shaft View Details Straight shaft View Details Straight shaft View Details
S type Straight shaft (metric) View Details Straight shaft (metric) View Details
T type Straight shaft View Details Straight shaft View Details Straight shaft View Details
AR type Rammer View Details
