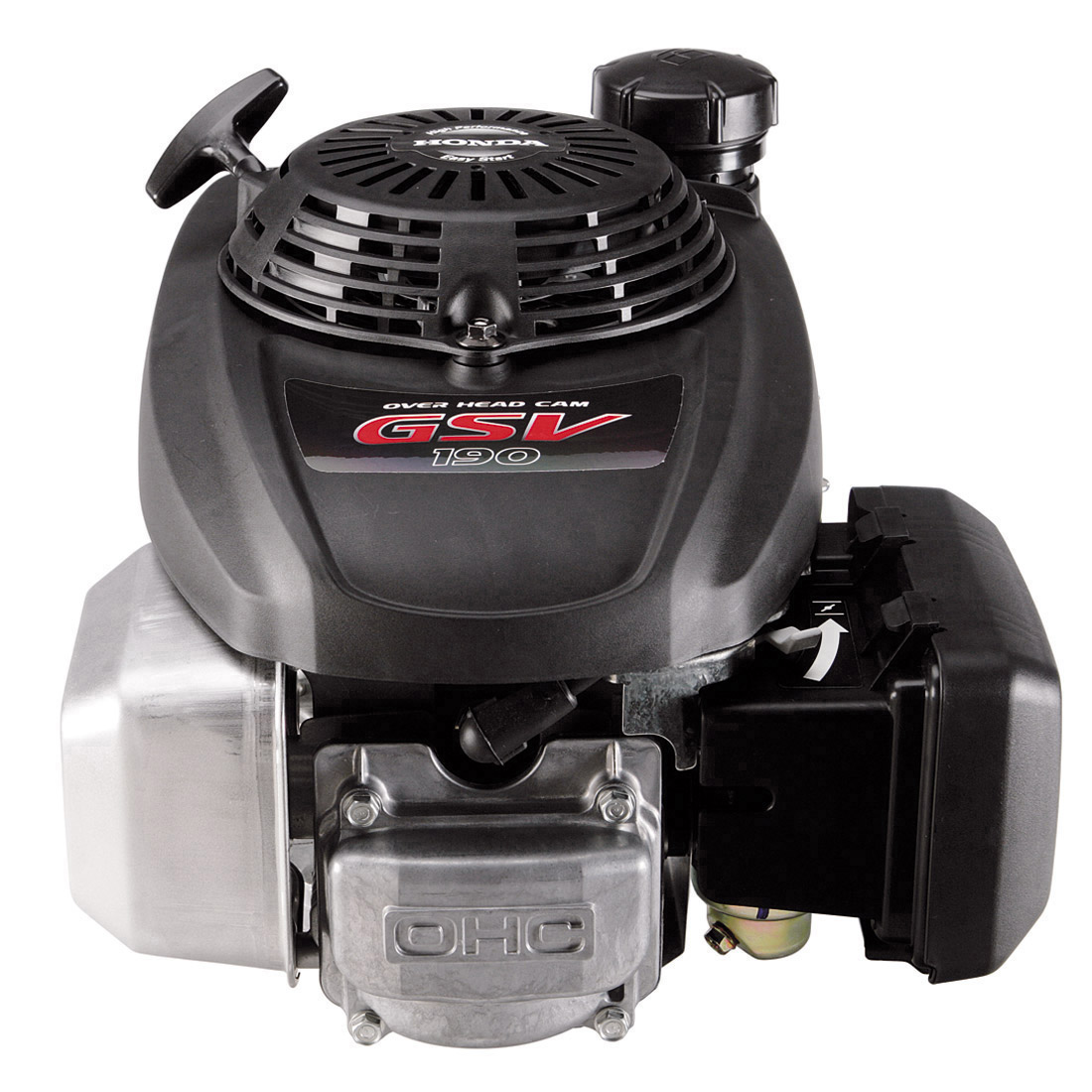

Honda GSV190

Honda GSV190

Contact us for price

Stock status: Call Store for Availability

GSV190

Durability comes standard.

The GSV190 offers the best of two worlds. Higher durability, with features like a cast iron cylinder liner and three-piece oil control. And the benefits of a lightweight, compact, quiet OHC design. It’s an excellent choice for demanding homeowner applications and commercial equipment alike.

Common Applications
  • Pressure washers
  • Lawn mowers
  • Commercial lawn and garden
  • Forestry equipment
  • Agricultural equipment
Call Us Now

Specs

SPECIFICATIONS

GSV190
Engine Type Air-cooled 4-stroke OHC
Bore x Stroke 2.7 x 2.0 in (69 x 50 mm)
Displacement 11.4 cu in (187 cm3)
Net Power Output* 5.1 HP (3.8 kW) @ 3,600 rpm
Net Torque 8.3 lb-ft (11.3 Nm) @ 2,500 rpm
PTO Shaft Rotation Counterclockwise (from PTO shaft side)
Compression Ratio 8.5:1
Carburetor Horizontal type butterfly valve
Ignition System Transistorized magneto
Starting System Recoil
Lubrication System Splash
Governor System Centrifugal Mechanical
Air Cleaner Dual element
Oil Capacity 0.58 US qt (0.55l)
Fuel Tank Capacity 0.98 U.S. qts (0.93 liter)
Fuel Unleaded 86 octane or higher
Dry Weight 28.7 lb (13.0 kg)
WARNING: California Prop 65 Info

DIMENSIONS

GSV190
Length (min) 14.6" (371mm)
Width (min) 13.5" (343mm)
Height (min) 13.8" (349mm)

PTO

GSV190
N1 Straight shaft View Details
A2 Straight shaft View Details
S3 Straight shaft View Details
N5 Straight shaft View Details
N7 Straight shaft View Details
