Specs
| Sol-Ark-12K-P | |

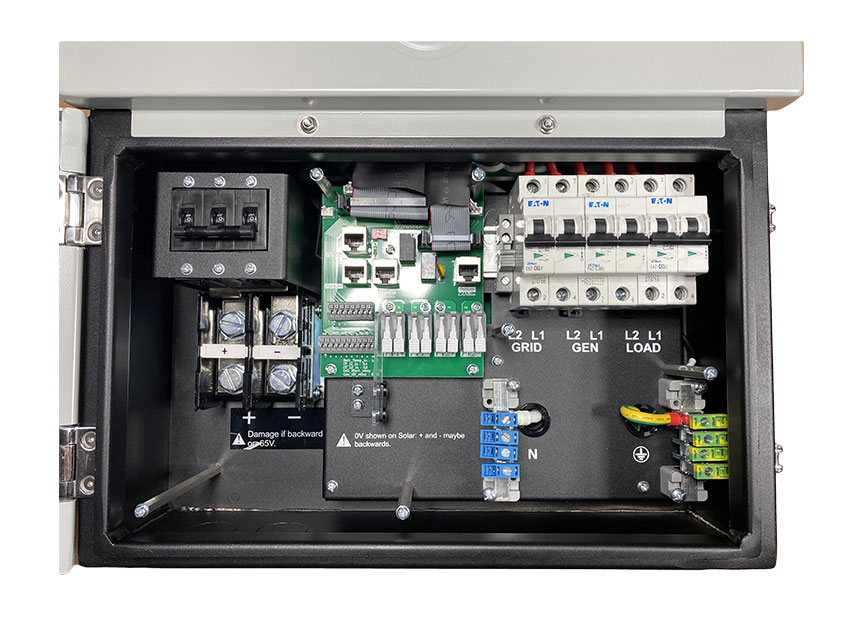

| Safety Features | PV DC Disconnect Switch, Ground Fault Detection, PV Arc Fault Detection, PV Input Lightning Protection, PV String Input Reverse Polarity Protection, AC Output Breaker, 250A Battery Breaker, Surge Protection DC Type II / AC Type II |
| Rapid Shutdown Capable | Yes |
| Maximum Output Power | 9,000W |
| Instantaneous Power (100ms) | 25,000VA @ 240V |
| CEC Weighted Efficiency | 96.50% |
| Parallel Stacking | Up to 9 in parallel |
| Weight | 35.4 kg / 78 lb. |
| Dimensions (W x H x D) | 750 x 450 x 254 mm (29.5 x 17.7 x 10 in) |
| Warranty Period | 10 Years |
| Battery Compatibility | Lithium / Lead Acid, 48V |
| Certifications | UL1741-2010/2018, IEEE1547a 2003/2014, FCC 15 Class B, UL1741SB, CA Rule 21, HECO Rule 14H |
| Installation Manual | Download |
