Specs

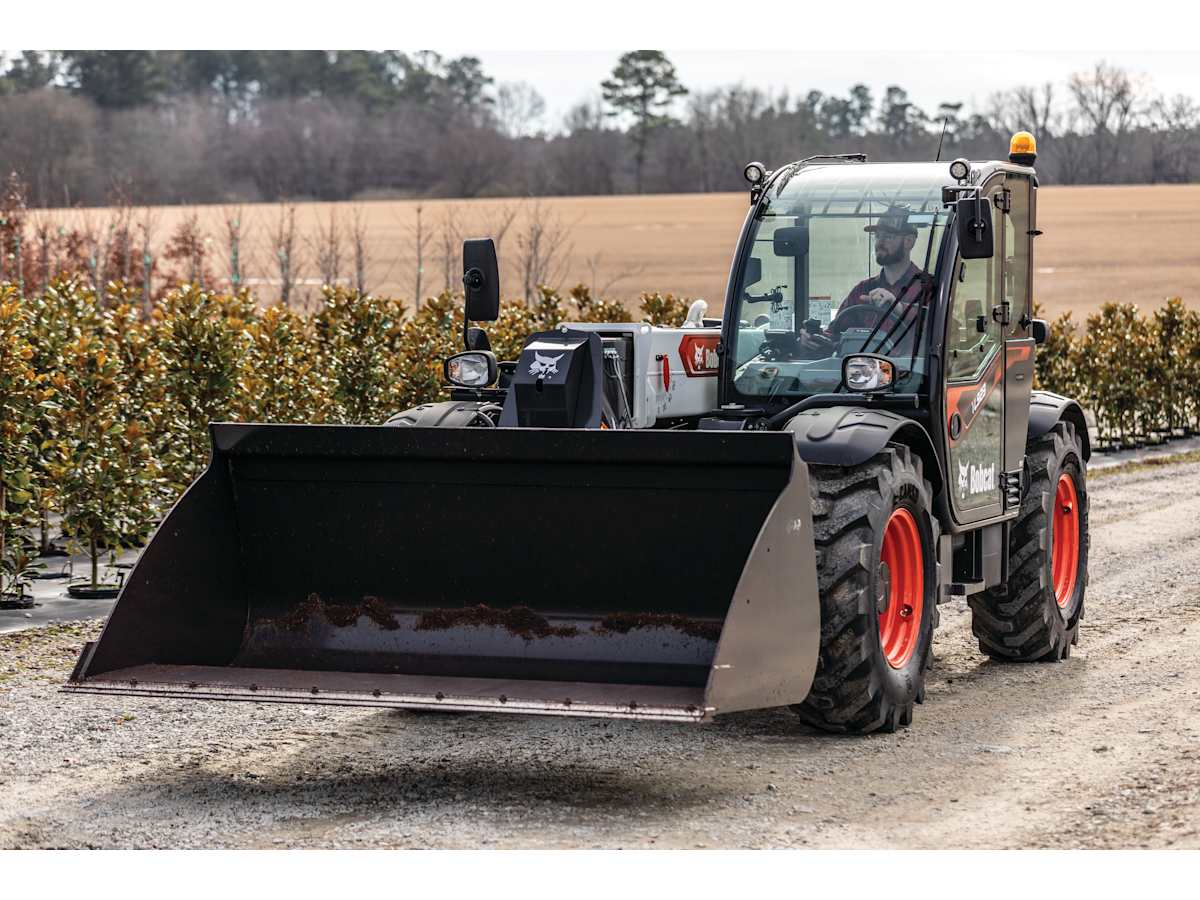

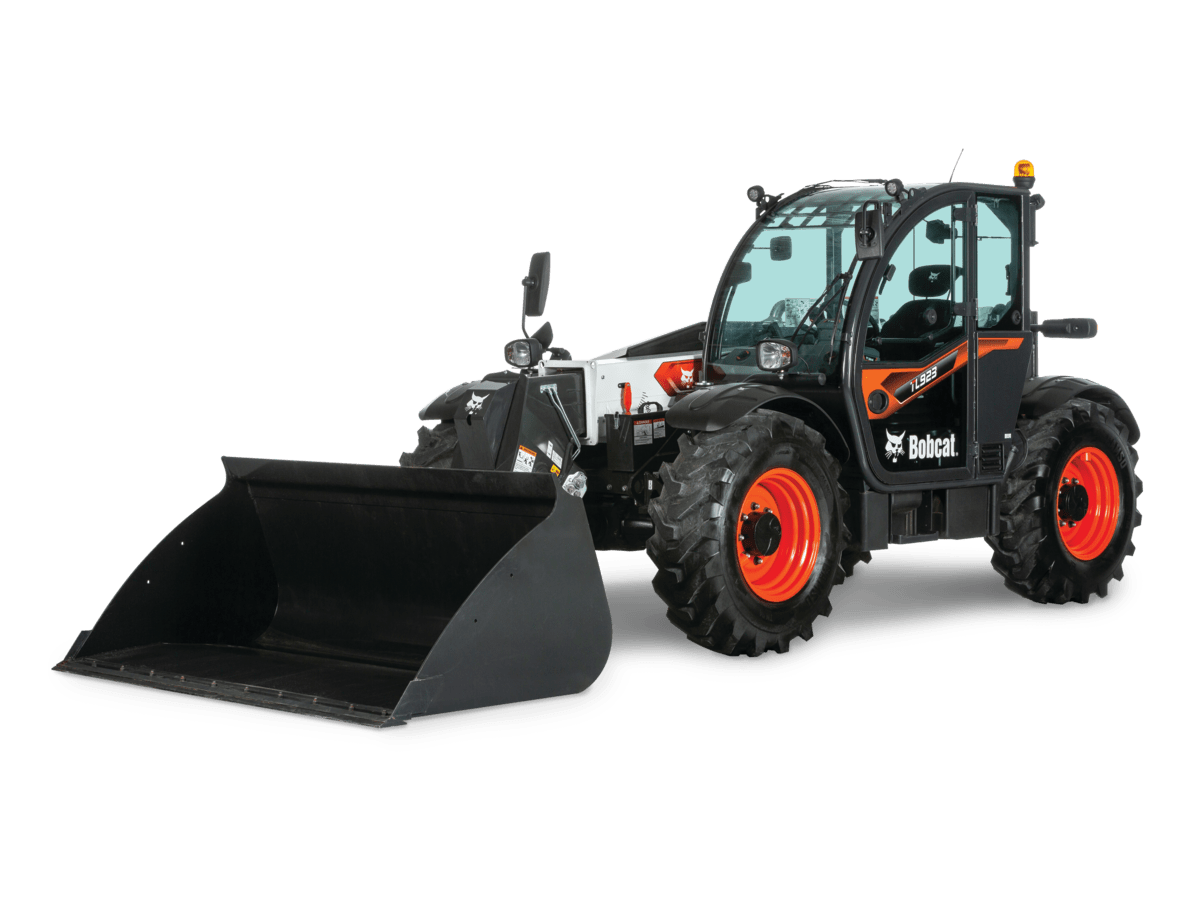

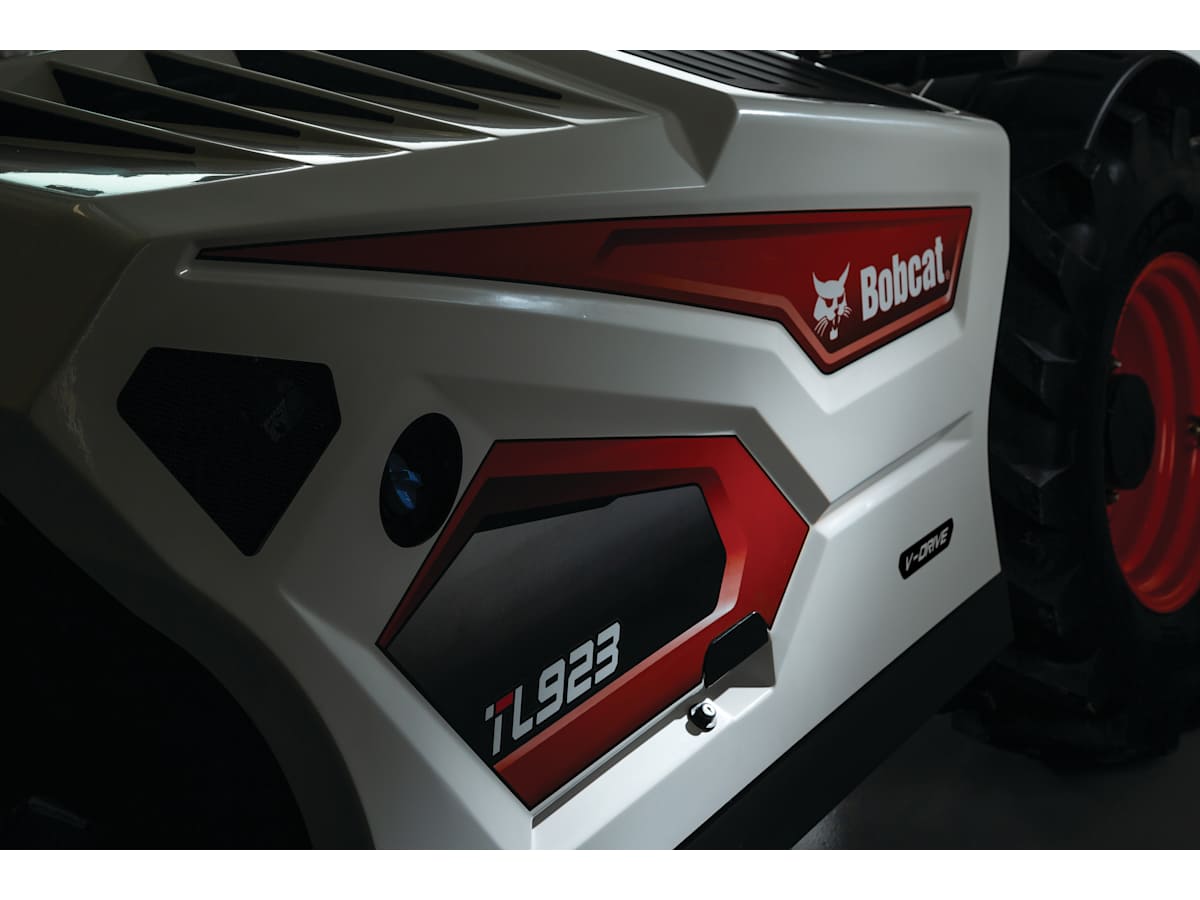

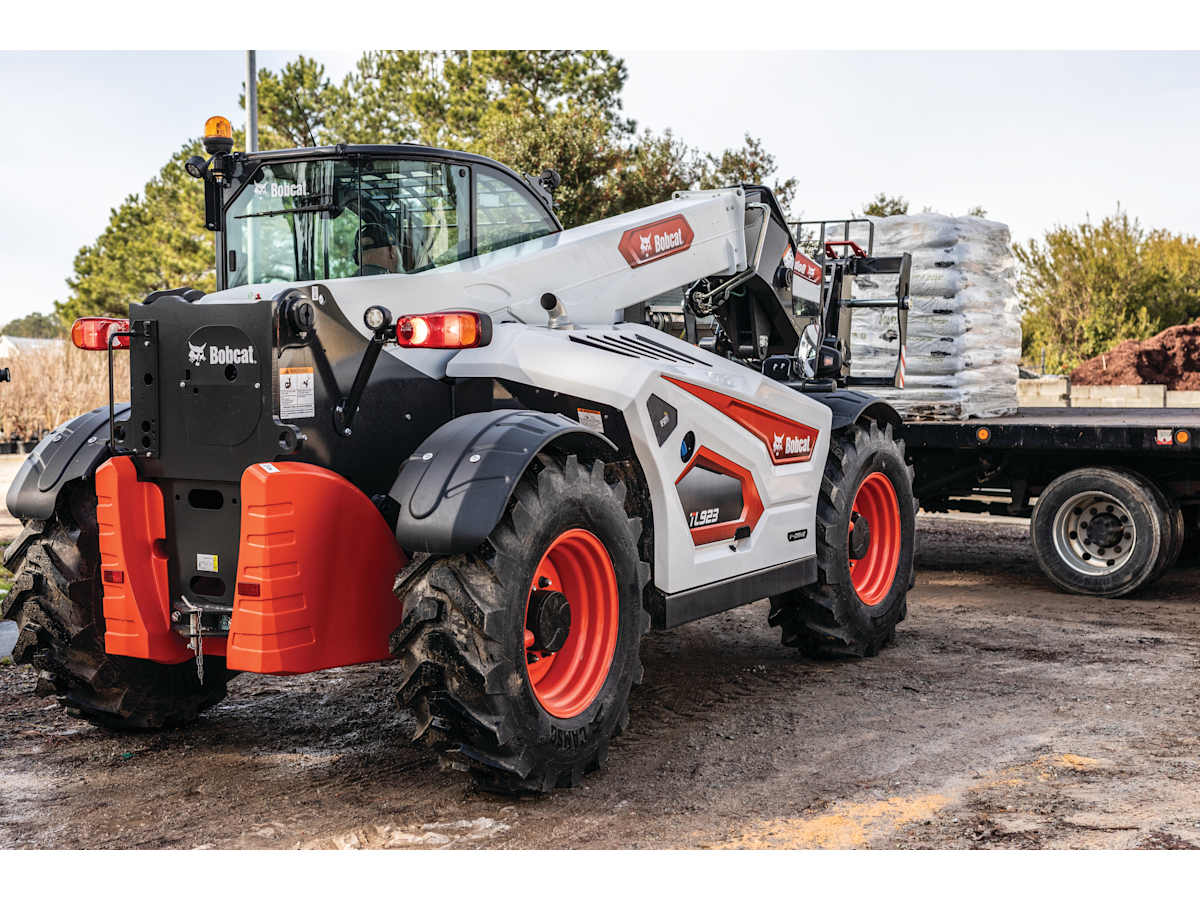

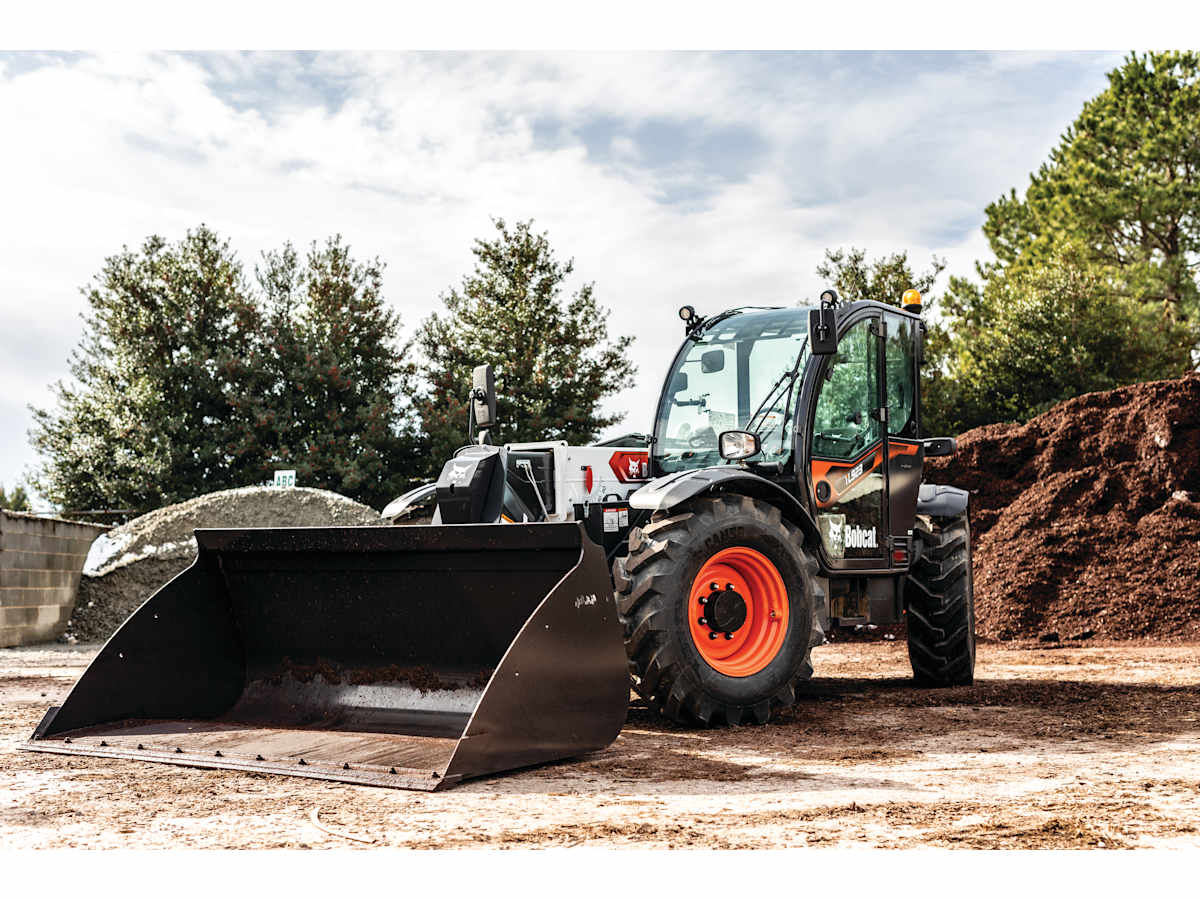

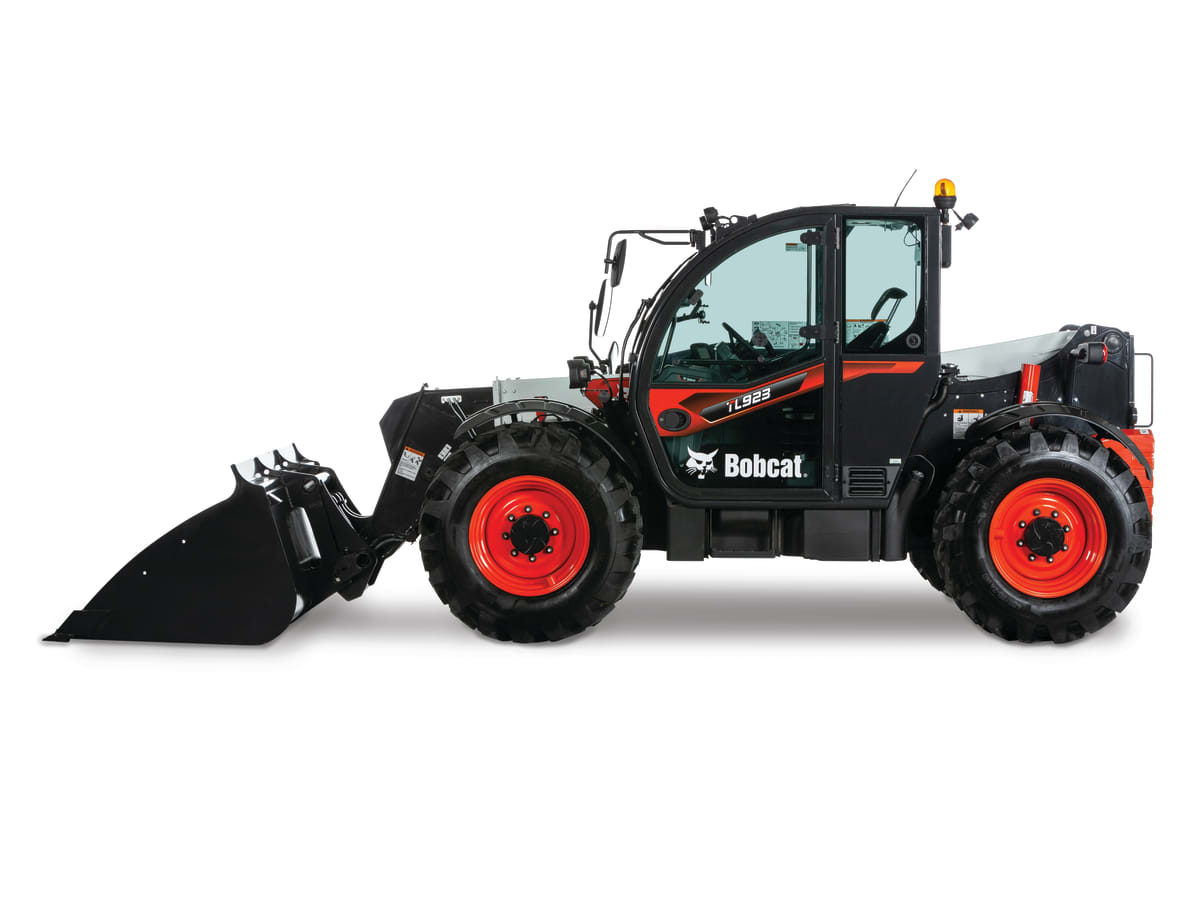

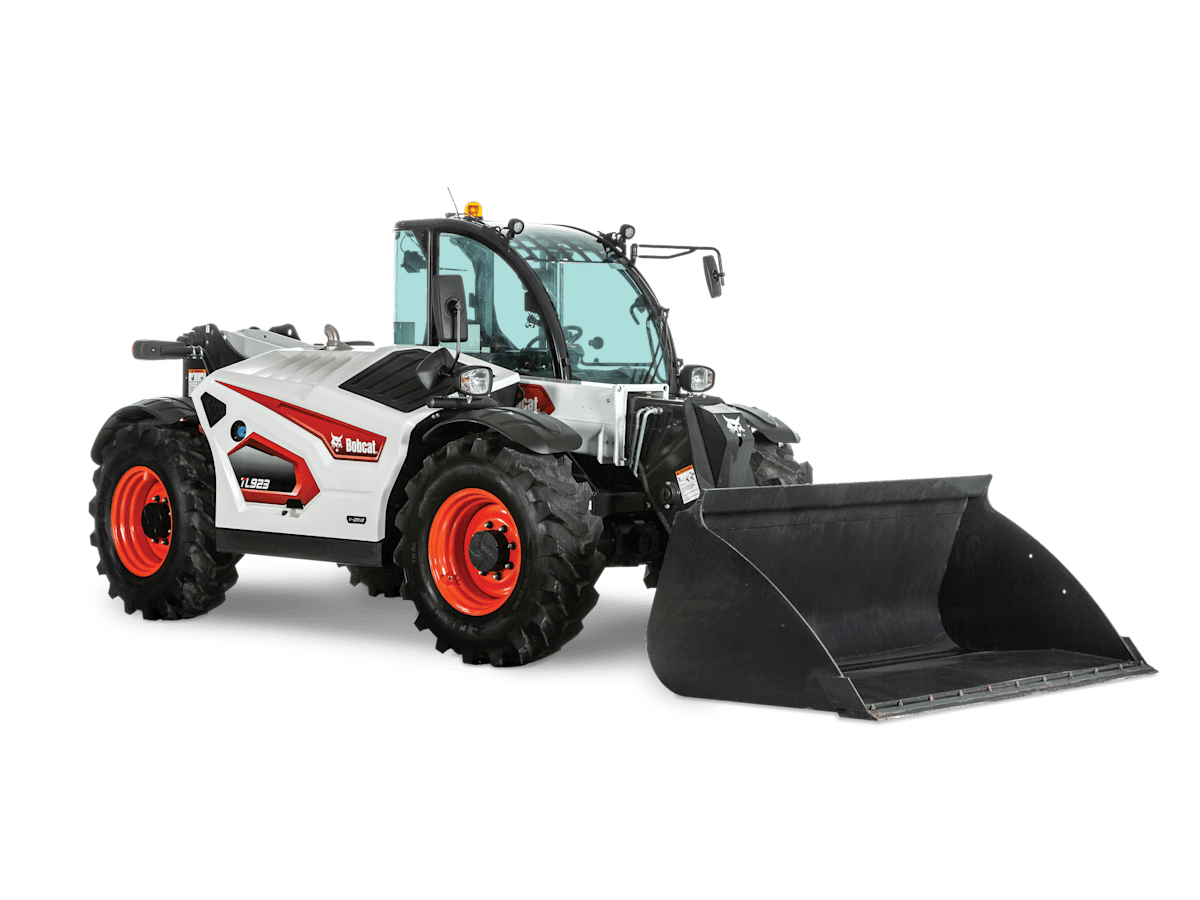

TL923 Key Specifications
TL923 <!-->
Horsepower
135 hp
Operating Weight
18158 lb
Rated Capacity
9041 lb
Lift Height
277 in
Rated Capacity @ Full Height
7056 lb
Auxiliary Std Flow
39.6 gal/min
Engine
<!--> TL923 -->
Emissions Tier (EPA)
Tier 4 <!-->
Engine Cooling
Liquid -->
Engine Fuel
Diesel <!-->
Horsepower
135 hp
Displacement
207 in³
Turbocharged Engine
yes -->
Performance
<!--> TL923 -->
Operating Weight
18158 lb
Travel Speed - High
24.8 mph
Travel Speed - Low
3.7 mph
Rated Capacity
9041 lb
Lift Height
277 in
Max Reach
158.3 in
Rated Capacity @ Full Height
7056 lb
Rated Capacity @ Max Reach
3749 lb
Bucket Breakout Force
15,736 lbf
Max Draw Bar Pull
16635 lb
Boom Breakout Force
9,127 lbf
Hydraulic System
<!--> TL923 -->
Auxiliary Std Flow
39.6 gal/min
Auxiliary Pressure
3,699 psi
Dimension
<!--> TL923 -->
Length
243.3 in
Length Fork Heel To Rear
195.9 in
Width
90.6 in
Height
95.4 in
Height with Operator Cab
95.4 in
Cab Height with Beacon
100.8 in
Wheelbase
113 in
Features
<!--> TL923 -->
Hydrostatic Transmission
Standard <!-->
Enclosed Operator Cab (ROPS/FOPS)
Standard -->
Heater Air Conditioning
Standard <!-->
Operating Lights
Standard -->
Quick Tach System
Not Applicable <!-->
Auxiliary Hydraulics
Standard -->
Joystick Control
Standard <!-->
Power Qtach
Standard -->
