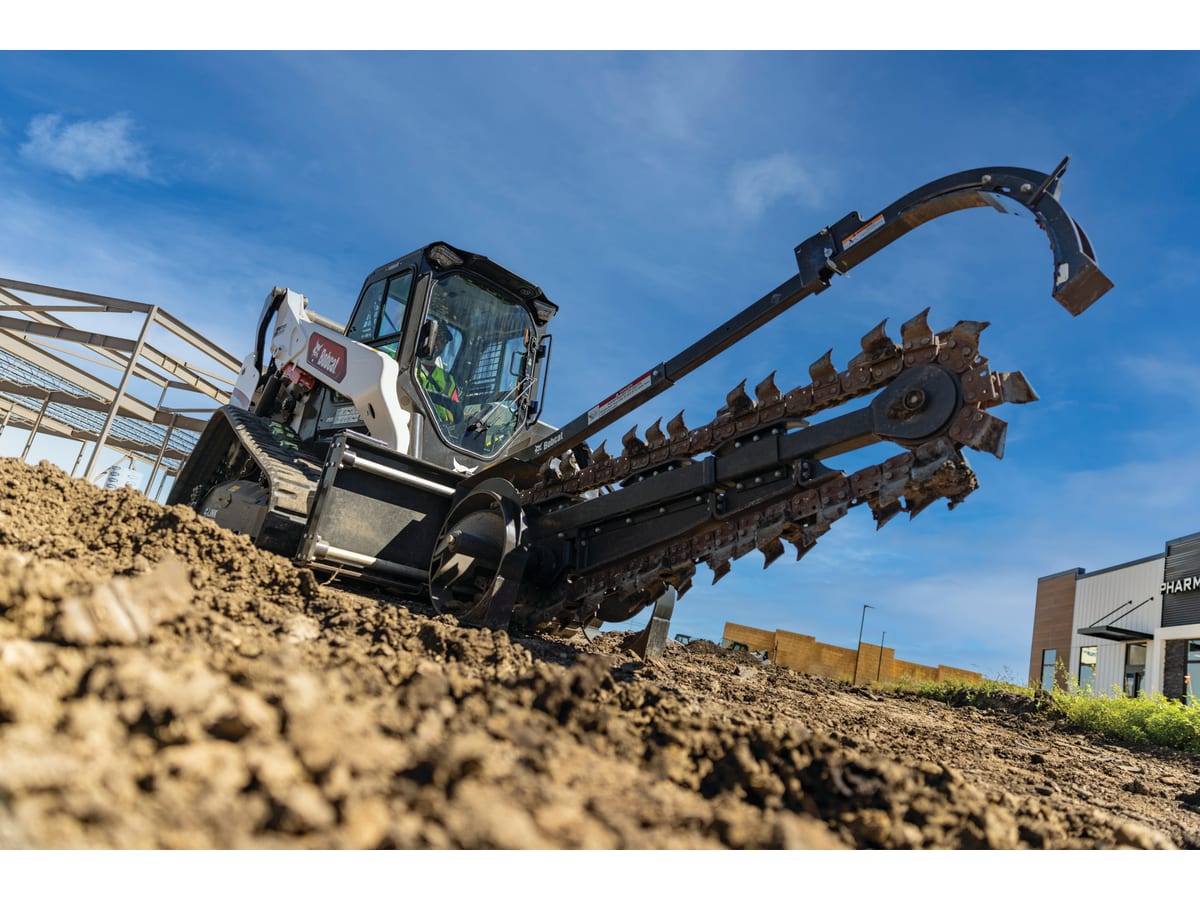

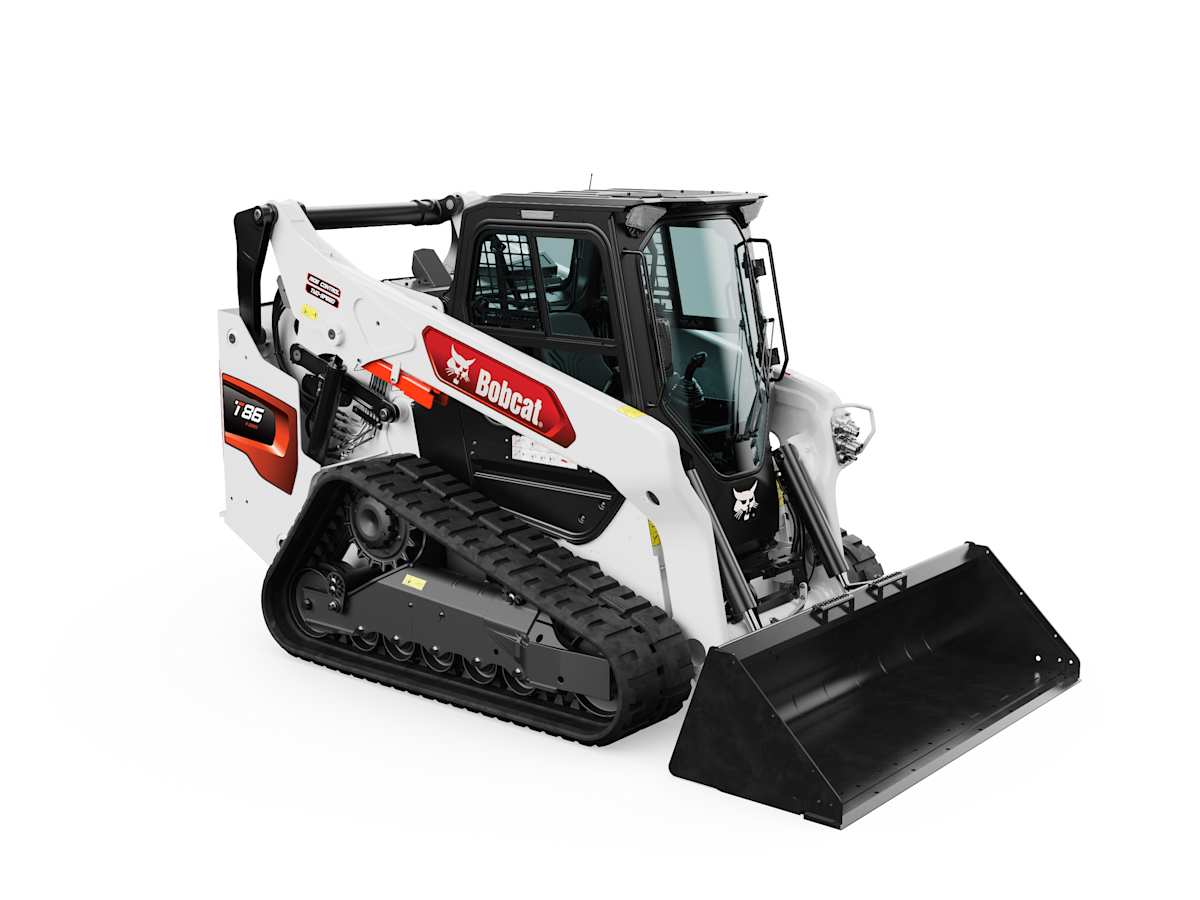

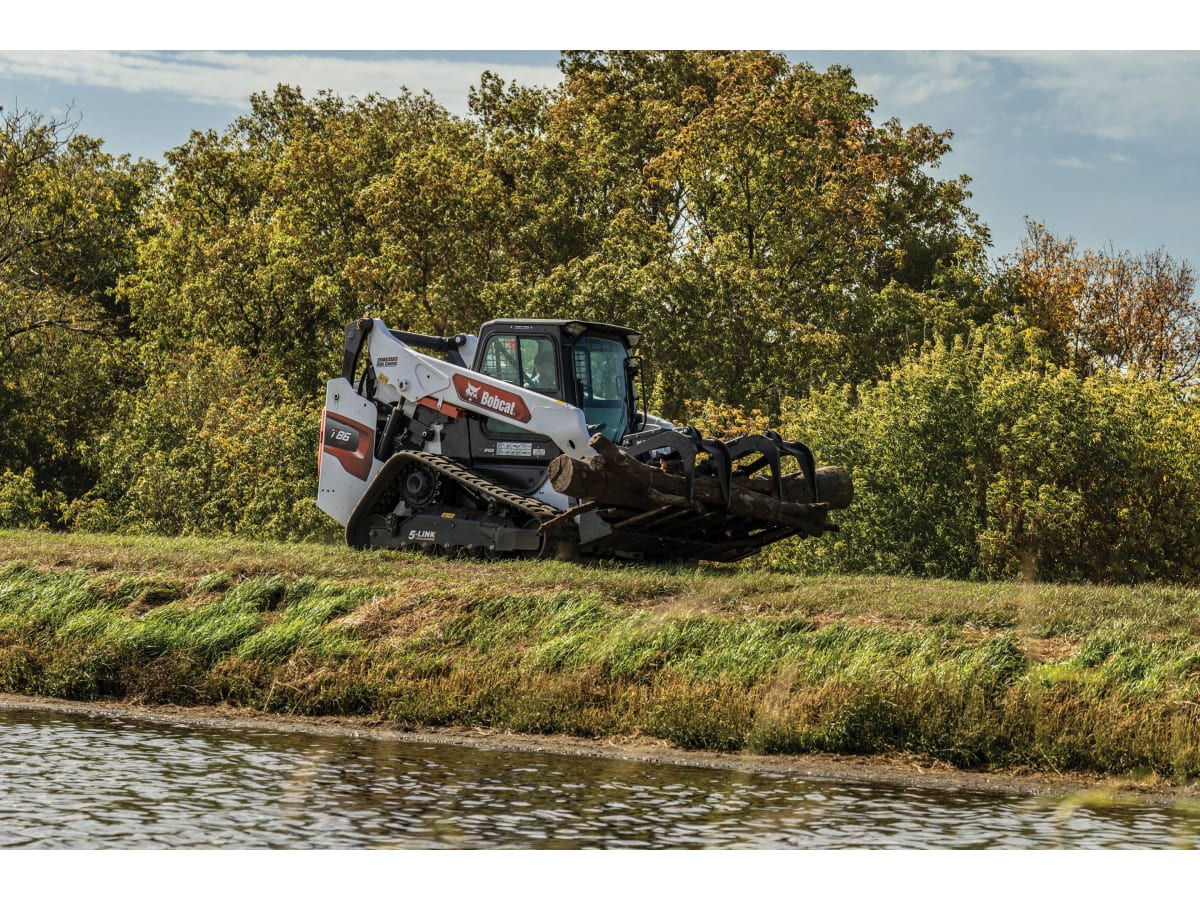

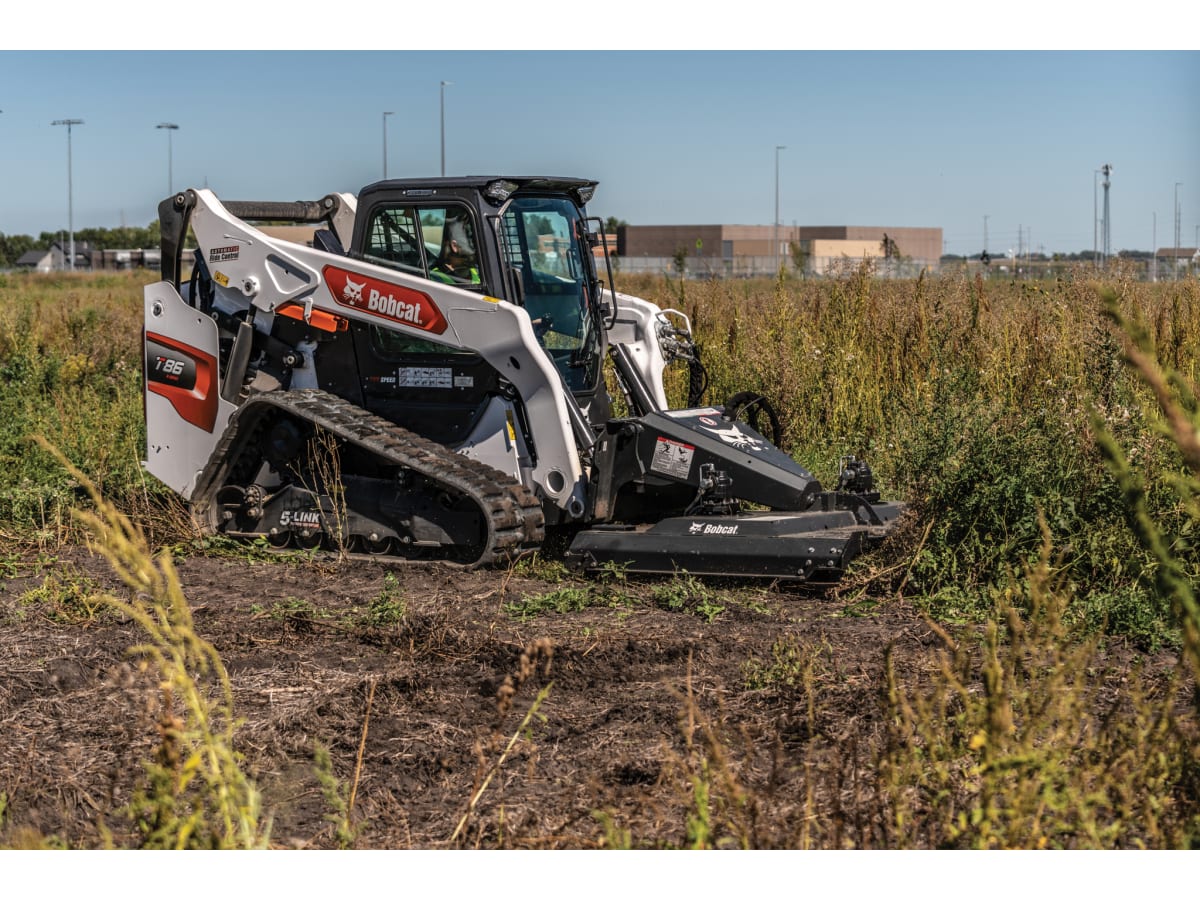

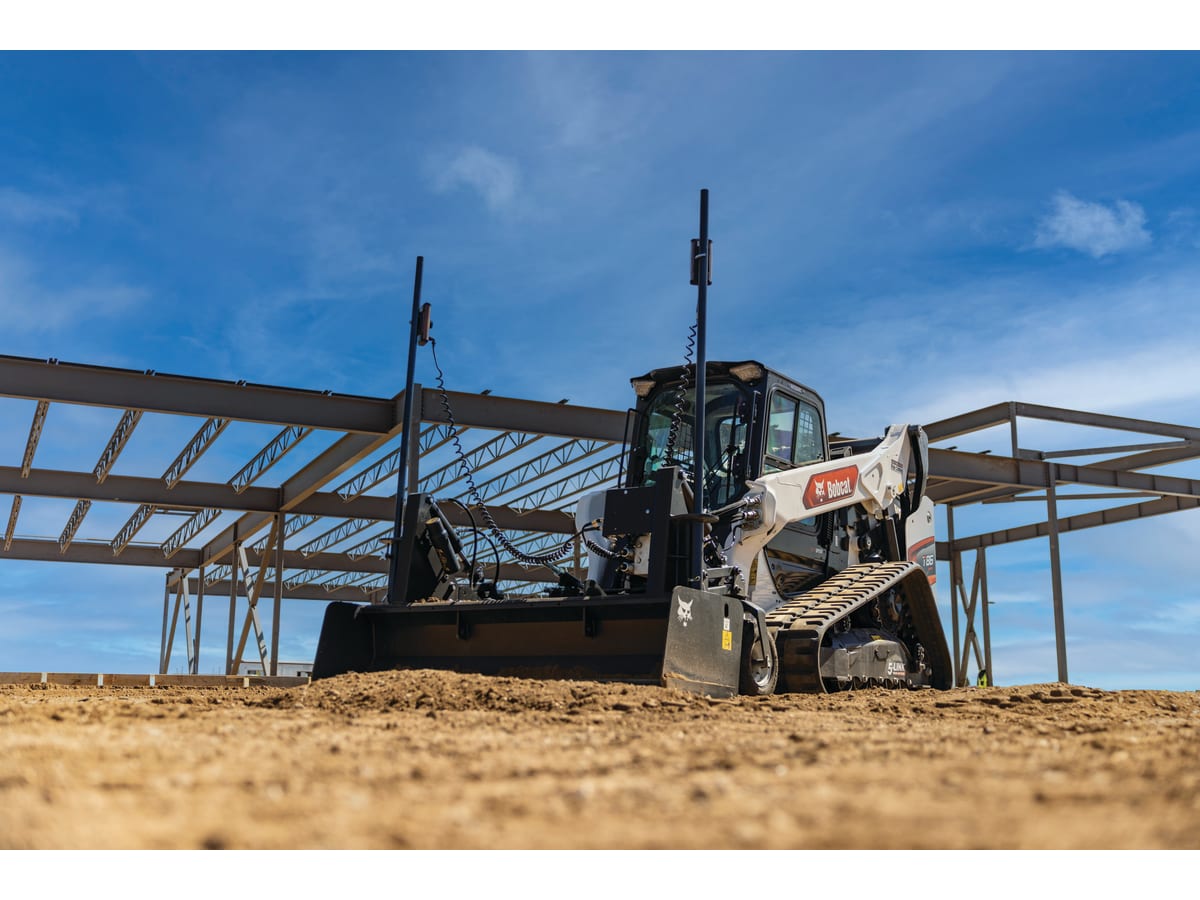

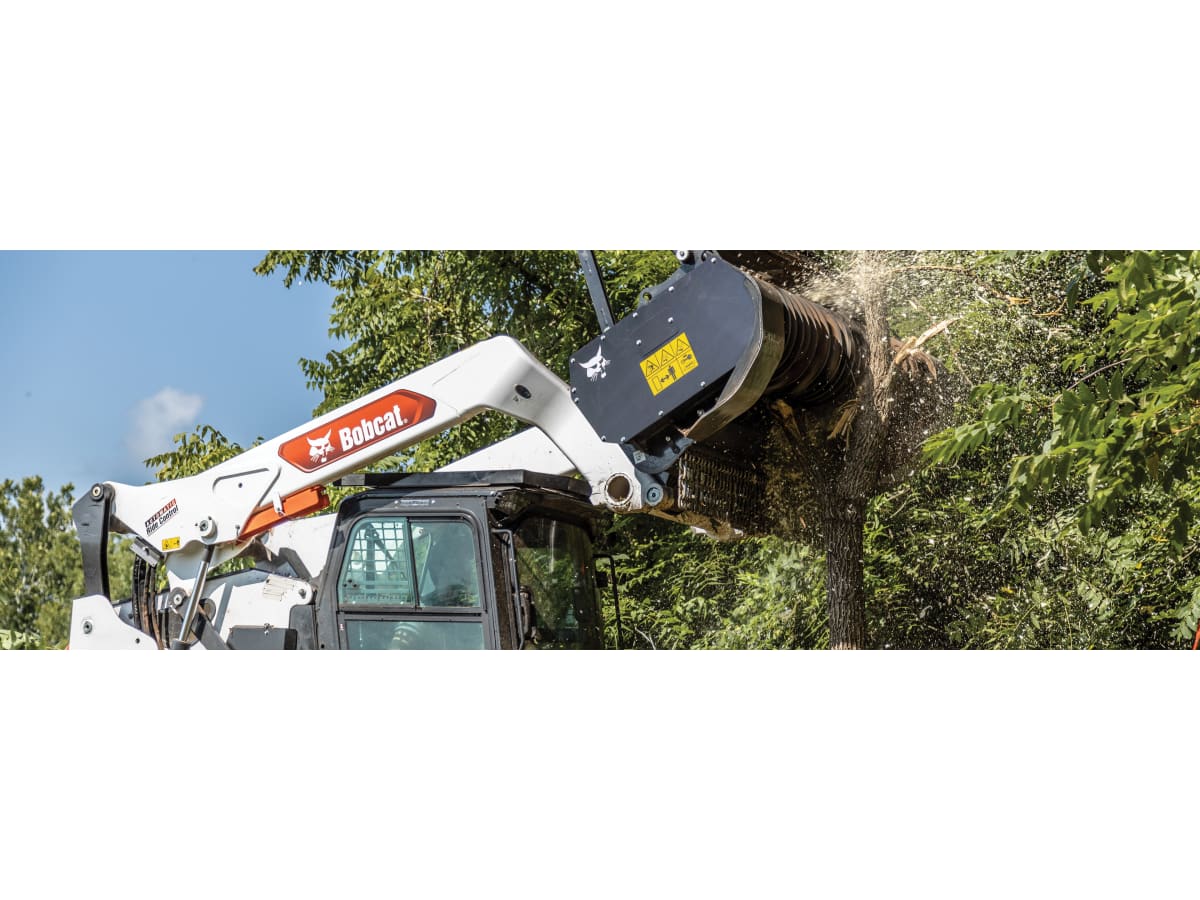

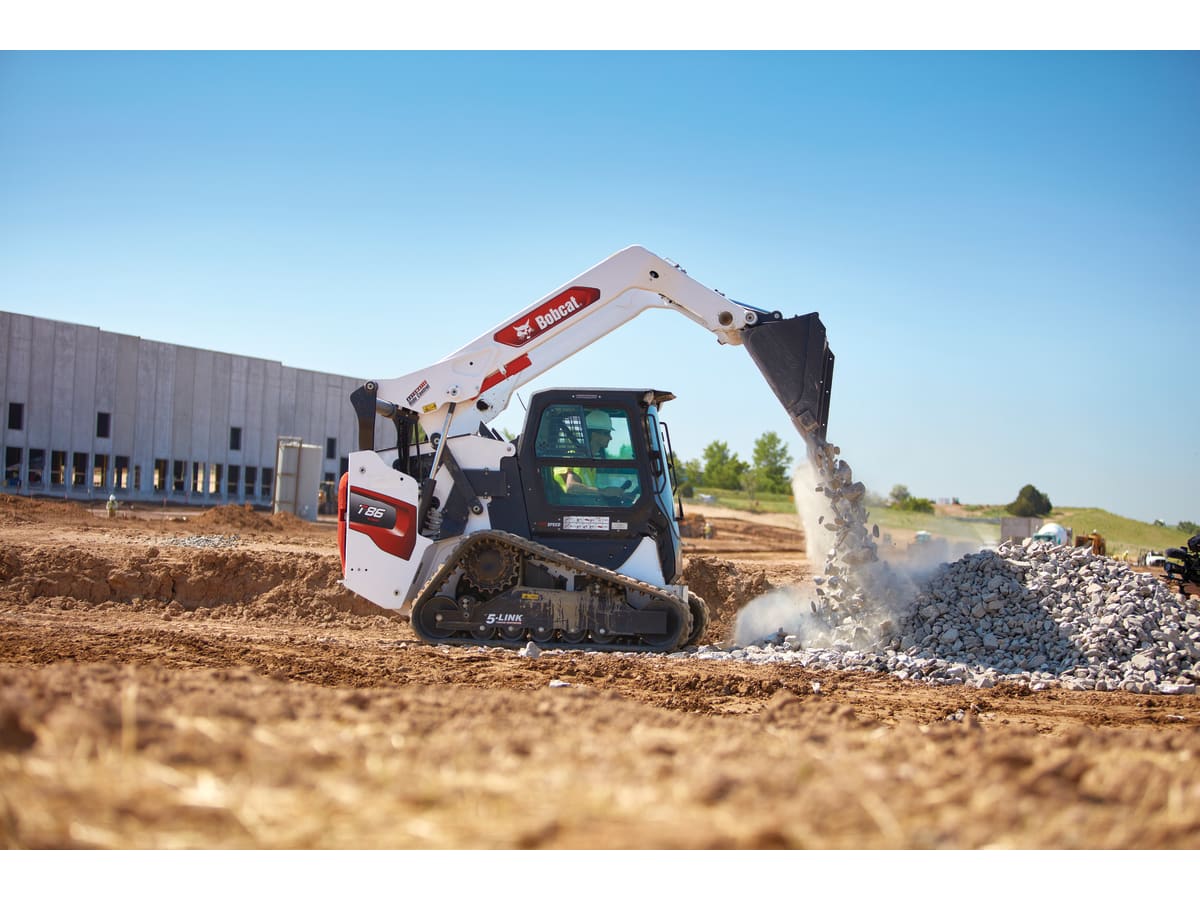

Bob Cat T86 Compact Track Loader
Bob Cat T86 Compact Track Loader
Bob Cat T86 Compact Track Loader
Bob Cat T86 Compact Track Loader

Bob Cat T86 Compact Track Loader

Contact us for price

Stock status: Call Store for Availability

Power and comfort like you’ve never experienced before. You’re getting the best of the best with super-flow hydraulics, industry-leading hydraulic power management, premium comfort features and exceptional cooling even in the harshest conditions. There’s no compromises with the T86.

$120,753 USD**

As low as 0% for 60 months* or rebates up to $10,000 USD* / $13,500 CAD* in lieu of financing on Bobcat T86 compact track loaders. Offers end June 30, 2025.

Call Us Now

Specs

T86 Key Specifications

T86
Rated Operating Capacity (ISO)
3,800 lb
Operating Weight
12393 lb
Ground Pressure (Rubber)
4.8 psi
Auxiliary Std Flow
23.6 gal/min
Auxiliary High Flow
36.6 gal/min
Joystick Control
Standard

Engine

T86
Emissions Tier (EPA)
Tier 4
Engine Cooling
Liquid
Engine Fuel
Diesel
Horsepower
105 hp
Turbocharged Engine
yes

Performance

T86
Rated Operating Capacity (ISO)
3,800 lb
Rated Operating Capacity 200 lb. Counterweight
3,950 lb
Rated Operating Capacity 300 lb. Counterweight
4,025 lb
Rated Operating Capacity 400 lb. Counterweight
4,100 lb
Rated Operating Capacity with Torsion
3,700 lb
Operating Capacity (50% of Tip)
5429 lb
Tipping Load
10857 lb
Operating Weight
12393 lb
Travel Speed
5.5 mph
Travel Speed (2-speed option)
10.7 mph
Ground Pressure (Rubber)
4.8 psi

Capacities

T86
Fuel Tank
31.6 gal

Hydraulic System

T86
Hydraulic System Pressure (Standard and High Flow)
3,500 psi
Hydraulic System Pressure (Super Flow)
4,061 psi
Hydraulic Standard Flow
23.6 gal/min
Hydraulic High Flow (optional)
36.6 gal/min
Hydraulic Super Flow (optional)
42 gal/min
System Relief @ Quick Couplers
3,450 psi
Auxiliary Std Flow
23.6 gal/min
Auxiliary High Flow
36.6 gal/min

Dimension

T86
Length without Attachment
120.4 in
Width
78 in
Width (with bucket)
80 in
Height with Operator Cab
83.1 in
Height to Bucket Hinge Pin
132 in
Reach @ Maximum Height
38.4 in
Length of track on ground
66.3 in
Track Width
17.7 in
Track Width - Optional
17.7 in
Ground Pressure (Optional Tracks)
4.8 psi

Features

T86
5-Link Torsion Suspension Undercarriage
Optional
Radio Remote Control (SJC required)
Optional
Reversing Fan
Optional
Standard Display (includes keyless start)
Standard
Speed Management
Standard
Heated Cloth Air-Ride Seat
Standard
LED Front and Rear Lights
Standard
Joystick Control
Standard
Air Conditioning
Standard
Backup Alarm
Standard
BICS System (Interlock)
Standard
Suspension Seat
Not Applicable
Two Speed Travel
Standard
Auxiliary Hydraulics
Standard
Bob-Tach Attachment System
Standard
Power Bob-Tach
Standard
Ride Control
Optional
Horn
Standard
Sound Option
Standard
Dual-Direction Bucket Positioning
Standard
