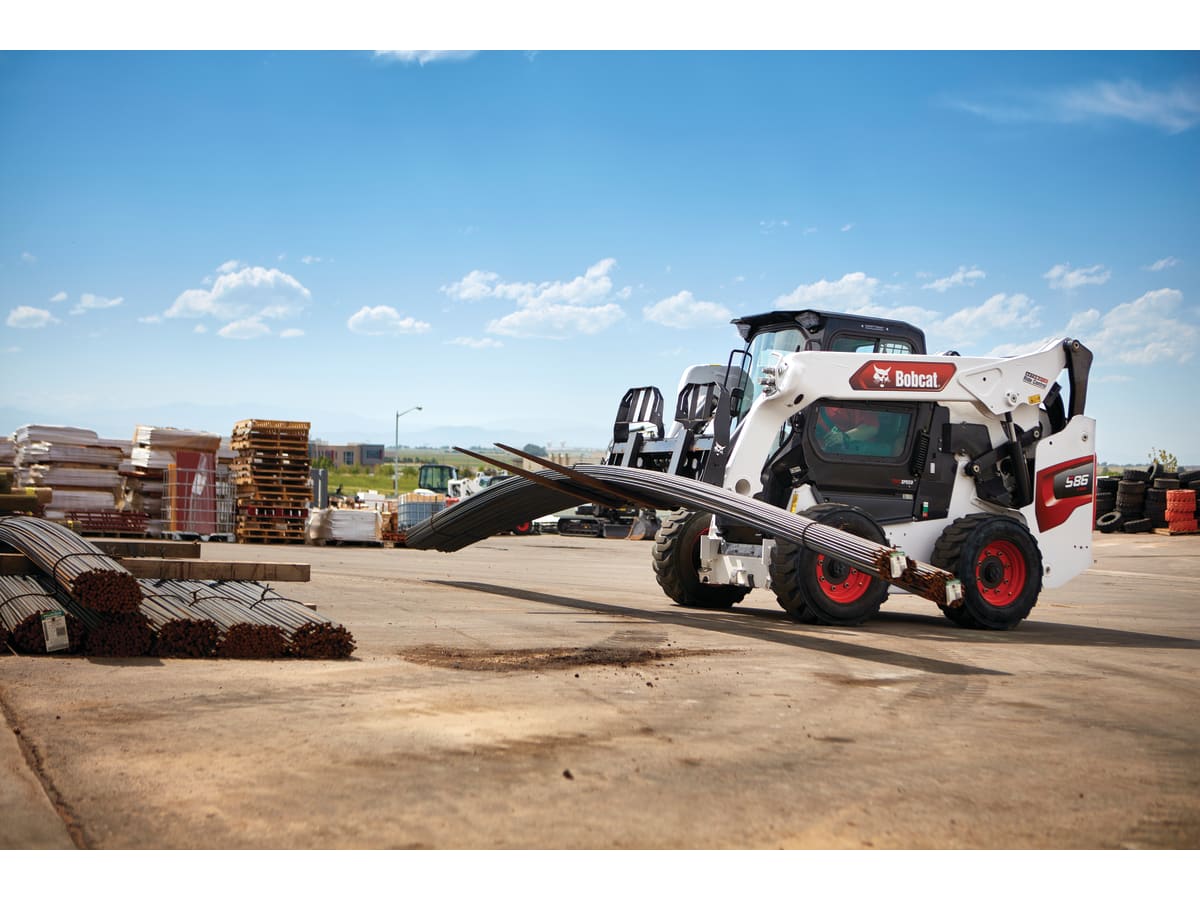

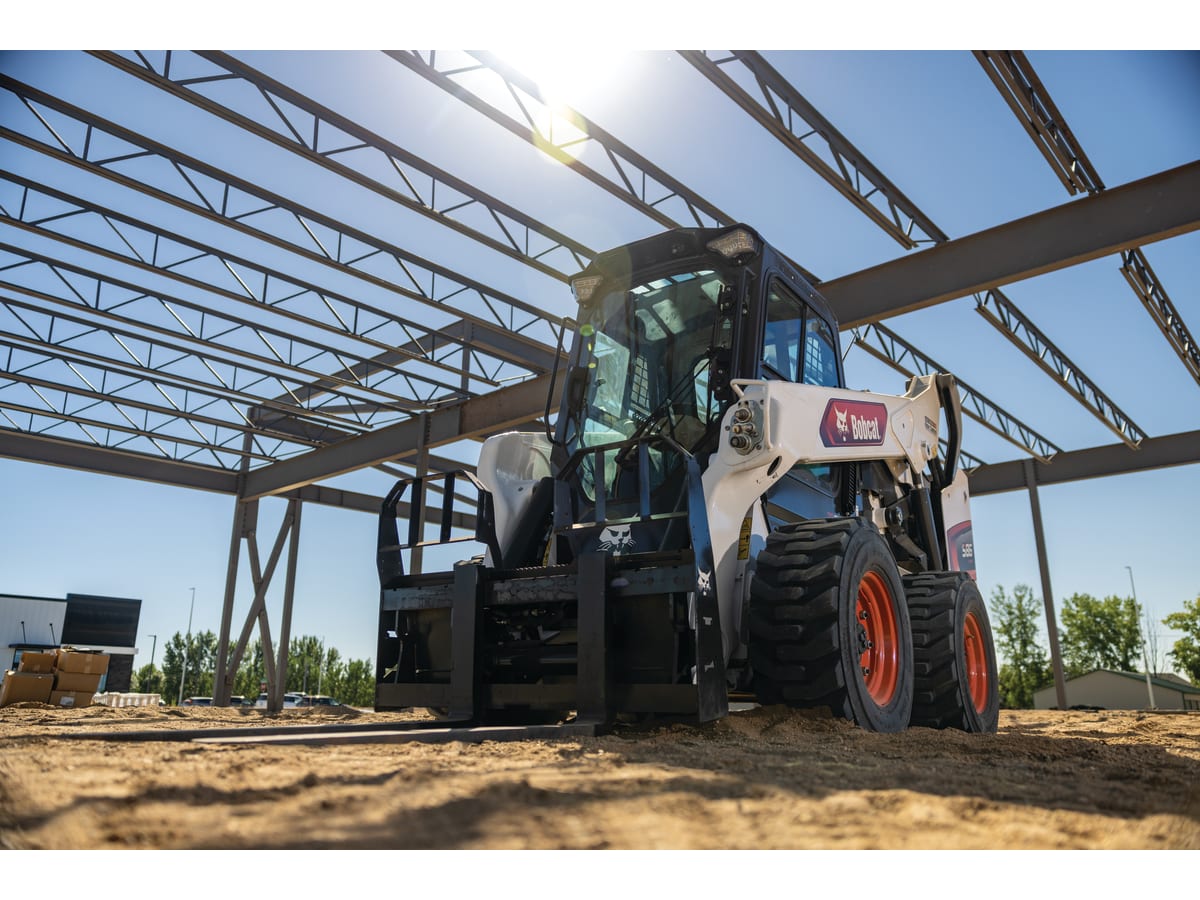

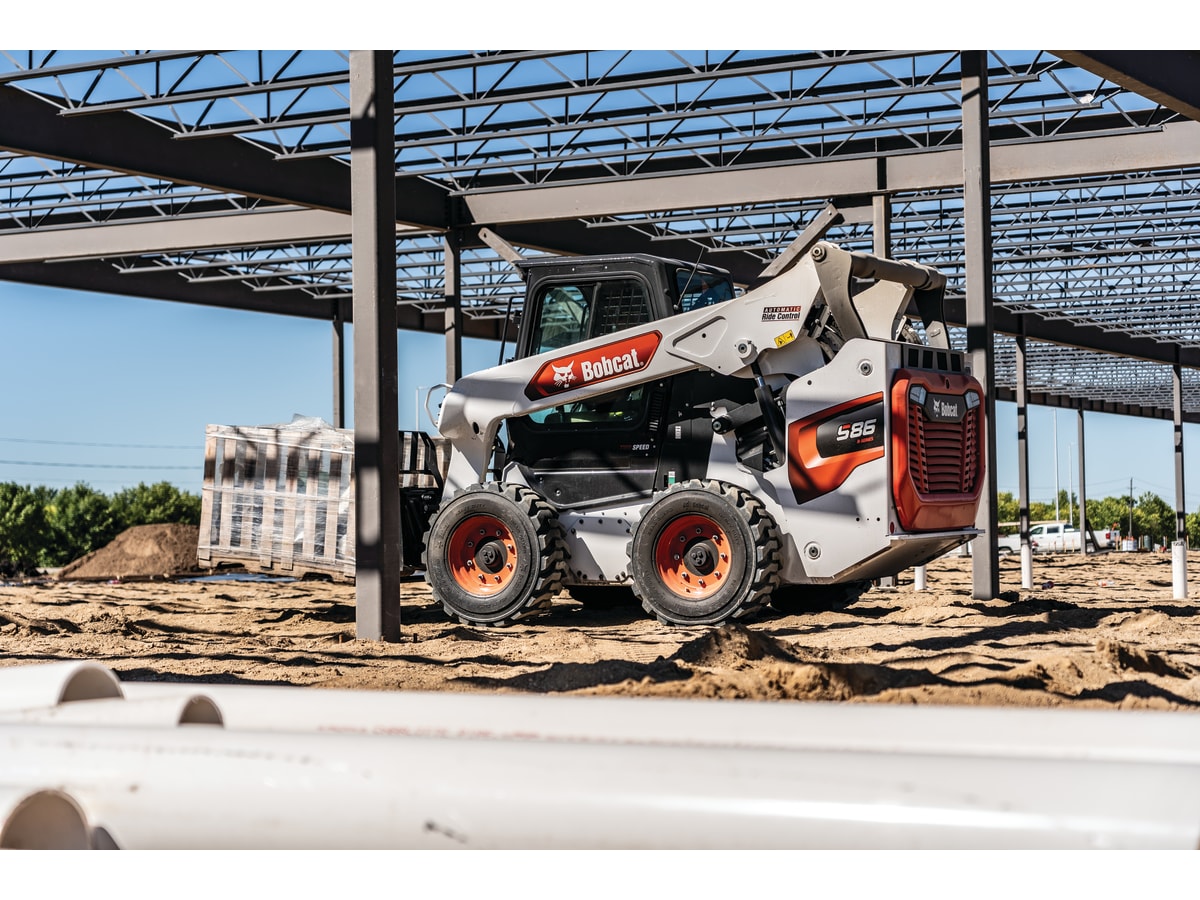

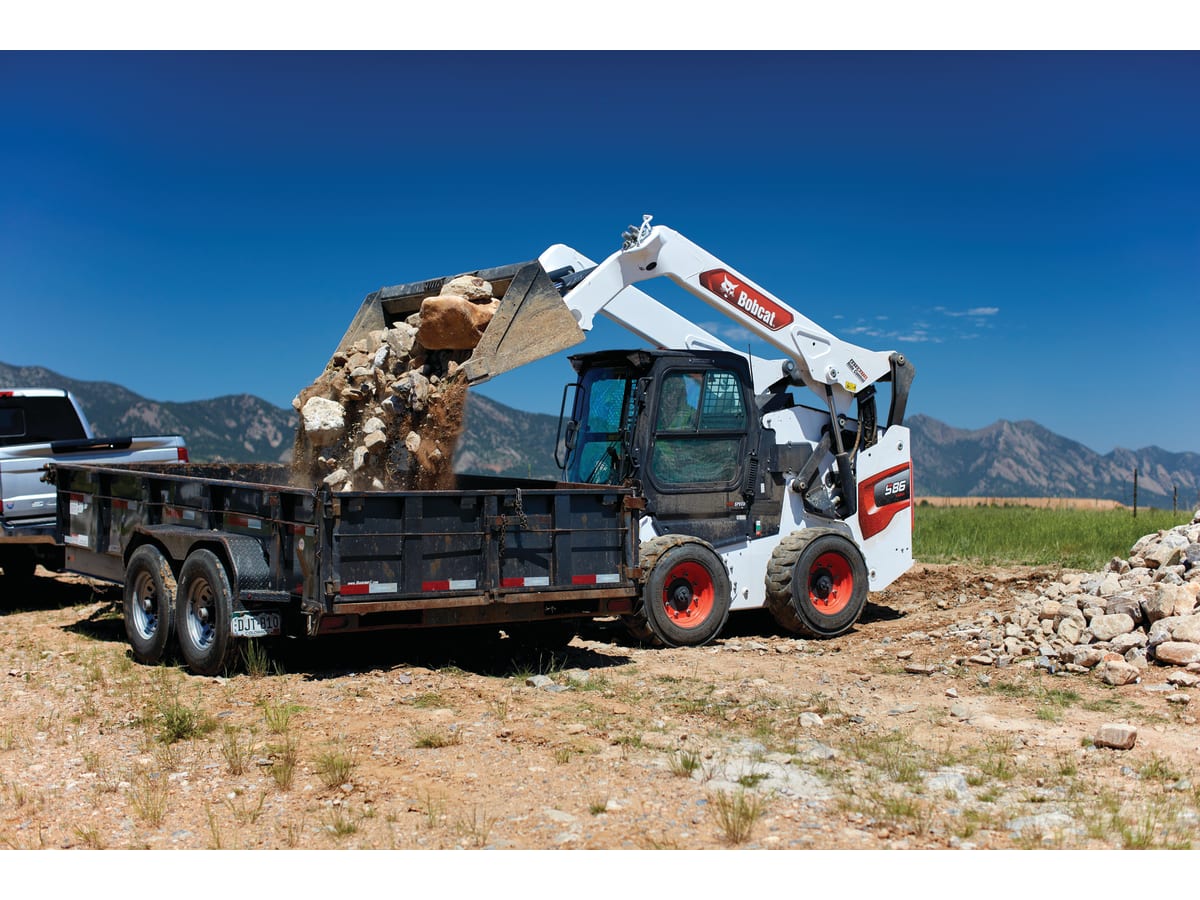

Bob Cat S86 Skid-Steer Loader
Bob Cat S86 Skid-Steer Loader
Bob Cat S86 Skid-Steer Loader
Bob Cat S86 Skid-Steer Loader

Bob Cat S86 Skid-Steer Loader

Contact us for price

Stock status: Call Store for Availability

The S86 is in a class all by itself. It’s the most powerful skid-steer we’ve ever built, delivering more usable engine and hydraulic power than ever before. With power and comfort like you’ve never experienced before, the feature-rich S86 will take your productivity to another level.

$80,623 USD**

As low as 0% for 48 months* or rebates up to $5,500 USD* / $7,400 CAD* in lieu of financing on Bobcat S86 Skid Steer Loader skid-steer loaders. Offers end June 30, 2025.

Call Us Now

Specs

S86 Key Specifications

S86
Horsepower
105 hp
Rated Operating Capacity (ISO)
3,400 lb
Operating Weight
9728 lb
Auxiliary Std Flow
23.6 gal/min
Auxiliary High Flow
36.6 gal/min
Joystick Control
Standard

Engine

S86
Emissions Tier (EPA)
Tier 4
Engine Cooling
Liquid
Engine Fuel
Diesel
Horsepower
105 hp
Turbocharged Engine
yes
Horsepower Management
Included with SJC Option

Performance

S86
Rated Operating Capacity (ISO)
3,400 lb
Rated Operating Capacity 200 lb. Counterweight
3,550 lb
Rated Operating Capacity 300 lb. Counterweight
3,625 lb
Rated Operating Capacity 400 lb. Counterweight
3,700 lb
Tipping Load
6800 lb
Operating Weight
9728 lb
Travel Speed
6.7 mph
Travel Speed (2-speed option)
12 mph

Capacities

S86
Fuel Tank
31.6 gal

Hydraulic System

S86
Hydraulic System Pressure (Standard and High Flow)
3,500 psi
Hydraulic System Pressure (Super Flow)
4,061 psi
Auxiliary Std Flow
23.6 gal/min
Hydraulic Super Flow (optional)
42 gal/min
Hydraulic High Flow (optional)
36.6 gal/min
Hydraulic Standard Flow
23.6 gal/min
Auxiliary High Flow
36.6 gal/min

Dimension

S86
Length
153.5 in
Length without Attachment
120.4 in
Length with Standard Bucket
153.5 in
Width
72 in
Width (with bucket)
74 in
Height with Operator Cab
83.1 in
Height to Bucket Hinge Pin
132 in
Reach @ Maximum Height
38 in
Turning Radius
90.5 in
Wheelbase
51.3 in

Features

S86
Joystick Control
Standard
Air Conditioning
Standard
Adjustable Seat
Standard
Backup Alarm
Standard
BICS System (Interlock)
Standard
Cab Enclosure
Standard
Sound Option
Standard
Cab Heater
Standard
Operating Lights
Standard
LED Front and Rear Lights
Standard
Standard Display (includes keyless start)
Standard
Speed Management
Standard
Parking Brake
Wedge Brake System
Radio
Standard
Rear Window
Standard
Top Window
Standard
Lift-Arm Support
Standard
Seat Belt
Standard
Suspension Seat
Standard
Heated Cloth Air-Ride Seat
Standard
Two Speed Travel
Standard
Deluxe Instrumentation
Not Applicable
Engine Shutdown
Standard
Hydraulic Bucket Positioning
Not Applicable
Dual-Direction Bucket Positioning
Standard
High Flow Option
Optional
Auxiliary Hydraulics
Standard
Spark Arrestor Muffler
DOC
Bob-Tach Attachment System
Standard
Power Bob-Tach
Standard
Ride Control
Standard
Radio Remote Control (SJC Required)
Optional
Reversing Fan
Optional
Rear Hydraulics
Optional
Horn
Standard

Tires

S86
