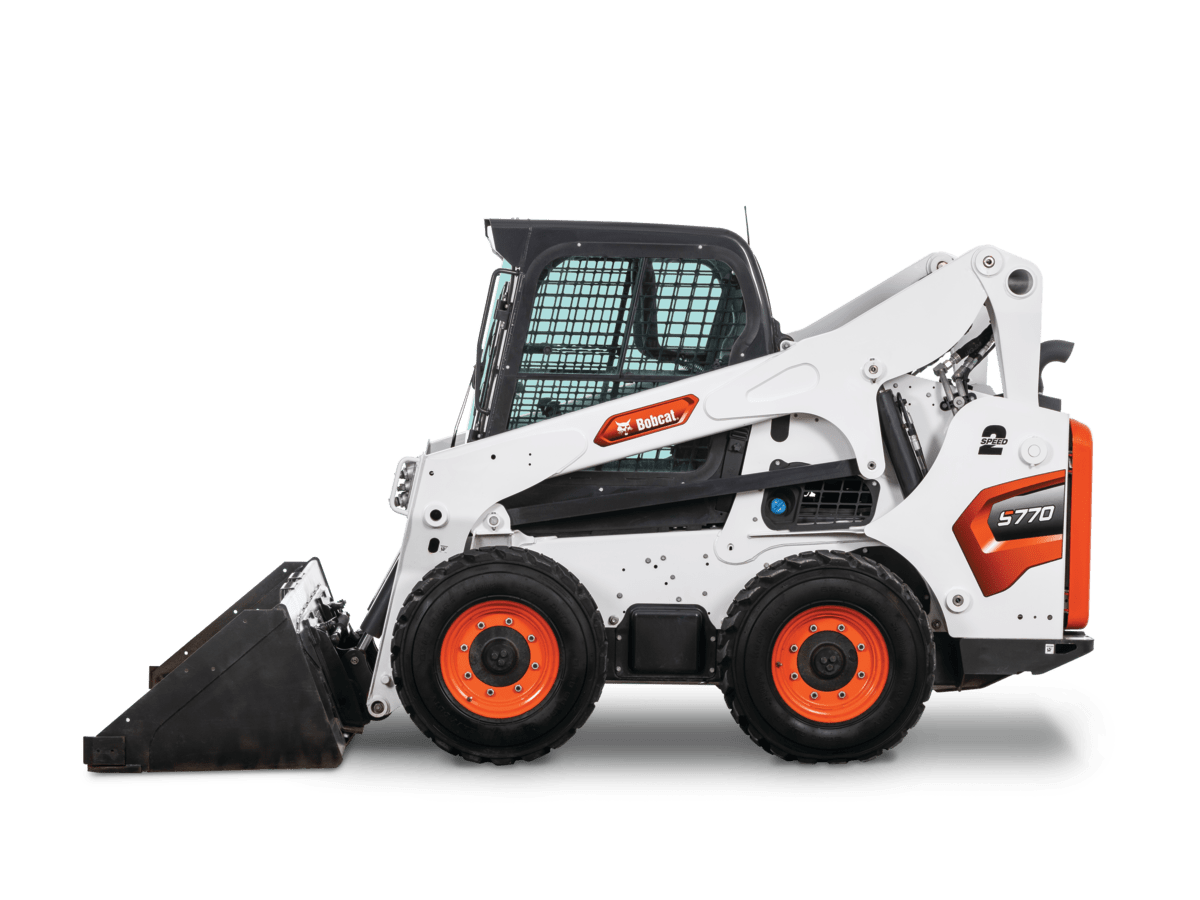

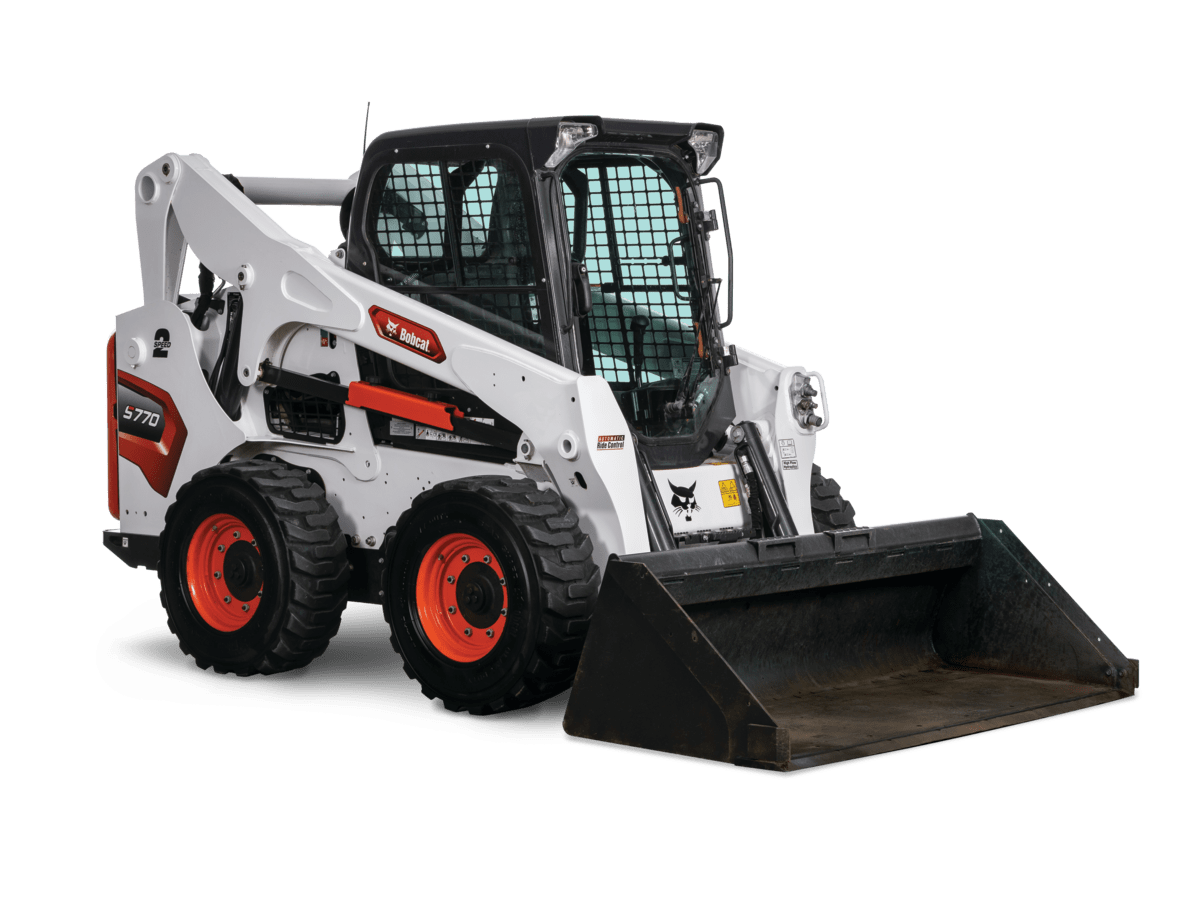

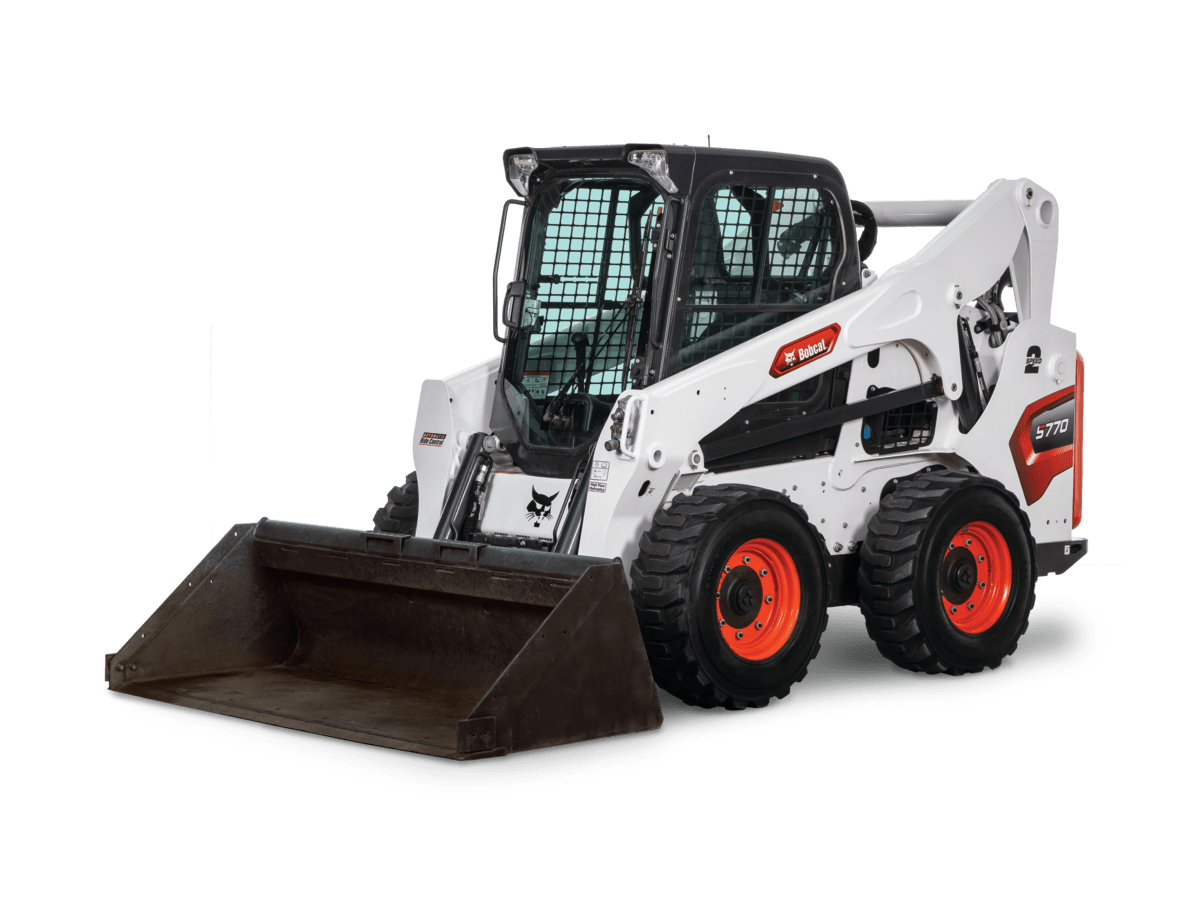

Bob Cat S770 Skid-Steer Loader
Bob Cat S770 Skid-Steer Loader
Bob Cat S770 Skid-Steer Loader
Bob Cat S770 Skid-Steer Loader
Bob Cat S770 Skid-Steer Loader
Bob Cat S770 Skid-Steer Loader
Bob Cat S770 Skid-Steer Loader
Bob Cat S770 Skid-Steer Loader
Bob Cat S770 Skid-Steer Loader
Bob Cat S770 Skid-Steer Loader
Bob Cat S770 Skid-Steer Loader
Bob Cat S770 Skid-Steer Loader
Bob Cat S770 Skid-Steer Loader
Bob Cat S770 Skid-Steer Loader
Bob Cat S770 Skid-Steer Loader
Bob Cat S770 Skid-Steer Loader

Bob Cat S770 Skid-Steer Loader

Contact us for price

Stock status: Call Store for Availability

You’ll power through your toughest jobsite challenges and accomplish more in less time with the quick and high-powered S770 skid steer loader. Do the work of an entire fleet of machines with the performance and attachment versatility built into one S770.

$75,029 USD*

Pay as low as 0% for up to 48 months* or choose a $4,000 USD*/$5,200 CAD* rebate on Bobcat S770 skid-steer loaders.

Call Us Now

Specs

S770 Key Specifications

S770 <!-->
Horsepower
92 hp
Rated Operating Capacity (ISO)
3,350 lb
Operating Weight
9314 lb
Auxiliary Std Flow
23 gal/min
Auxiliary High Flow
36.6 gal/min
Joystick Control
Optional -->
<!-->


S770 <!-->
Emissions Tier (EPA)
Tier 4 -->
Engine Cooling
Liquid <!-->
Engine Fuel
Diesel -->
Horsepower
92 hp
Turbocharged Engine
yes <!-->
S770 <!-->
Rated Operating Capacity (ISO)
3,350 lb
Tipping Load
6700 lb
Operating Weight
9314 lb
Travel Speed
7.1 mph
Travel Speed (2-speed option)
12.3 mph
S770 <!-->
Fuel Tank
23.9 gal
S770 <!-->
System Relief @ Quick Couplers
3,500 psi
Auxiliary Std Flow
23 gal/min
Auxiliary High Flow
36.6 gal/min
S770 <!-->
Length
141.6 in
Length without Attachment
114.3 in
Length with Standard Bucket
141.6 in
Width
72.1 in
Width (with bucket)
74 in
Height
81.3 in
Height with Operator Cab
81.3 in
Height to Bucket Hinge Pin
131.4 in
Reach @ Maximum Height
33.6 in
Turning Radius
85.8 in
Wheelbase
48.3 in
S770 <!-->
Joystick Control
Optional -->
Air Conditioning
Optional <!-->
Adjustable Seat
Standard -->
Backup Alarm
Standard <!-->
BICS System (Interlock)
Standard -->
Cab Enclosure
Optional <!-->
Sound Option
Optional -->
Cab Heater
Optional <!-->
Operating Lights
Standard -->
Parking Brake
Standard <!-->
Radio
Optional -->
Rear Window
Standard <!-->
Top Window
Standard -->
Lift-Arm Support
Standard <!-->
Seat Belt
Standard -->
Suspension Seat
Standard <!-->
Two Speed Travel
Standard -->
Deluxe Instrumentation
Optional <!-->
Engine Shutdown
Standard -->
Hydraulic Bucket Positioning
Optional <!-->
High Flow Option
Optional -->
Auxiliary Hydraulics
Standard <!-->
Spark Arrestor Muffler
Standard -->
Bob-Tach Attachment System
Standard <!-->
Power Bob-Tach
Optional -->
ACS (Switchable Controls)
Optional <!-->
Ride Control
Optional -->
Rear Hydraulics
Optional <!-->
Horn
Standard -->
S770 -->
<!-->


S770 Key Specifications

-->
S770 <!-->
Horsepower
92 hp
Rated Operating Capacity (ISO)
3,350 lb
Operating Weight
9314 lb
Auxiliary Std Flow
23 gal/min
Auxiliary High Flow
36.6 gal/min
Joystick Control
Optional -->
<!-->


Engine

-->
S770 <!-->
Emissions Tier (EPA)
Tier 4 -->
Engine Cooling
Liquid <!-->
Engine Fuel
Diesel -->
Horsepower
92 hp
Turbocharged Engine
yes <!-->

Performance

-->
S770 <!-->
Rated Operating Capacity (ISO)
3,350 lb
Tipping Load
6700 lb
Operating Weight
9314 lb
Travel Speed
7.1 mph
Travel Speed (2-speed option)
12.3 mph

Capacities

-->
S770 <!-->
Fuel Tank
23.9 gal

Hydraulic System

-->
S770 <!-->
System Relief @ Quick Couplers
3,500 psi
Auxiliary Std Flow
23 gal/min
Auxiliary High Flow
36.6 gal/min

Dimension

-->
S770 <!-->
Length
141.6 in
Length without Attachment
114.3 in
Length with Standard Bucket
141.6 in
Width
72.1 in
Width (with bucket)
74 in
Height
81.3 in
Height with Operator Cab
81.3 in
Height to Bucket Hinge Pin
131.4 in
Reach @ Maximum Height
33.6 in
Turning Radius
85.8 in
Wheelbase
48.3 in

Features

-->
S770 <!-->
Joystick Control
Optional -->
Air Conditioning
Optional <!-->
Adjustable Seat
Standard -->
Backup Alarm
Standard <!-->
BICS System (Interlock)
Standard -->
Cab Enclosure
Optional <!-->
Sound Option
Optional -->
Cab Heater
Optional <!-->
Operating Lights
Standard -->
Parking Brake
Standard <!-->
Radio
Optional -->
Rear Window
Standard <!-->
Top Window
Standard -->
Lift-Arm Support
Standard <!-->
Seat Belt
Standard -->
Suspension Seat
Standard <!-->
Two Speed Travel
Standard -->
Deluxe Instrumentation
Optional <!-->
Engine Shutdown
Standard -->
Hydraulic Bucket Positioning
Optional <!-->
High Flow Option
Optional -->
Auxiliary Hydraulics
Standard <!-->
Spark Arrestor Muffler
Standard -->
Bob-Tach Attachment System
Standard <!-->
Power Bob-Tach
Optional -->
ACS (Switchable Controls)
Optional <!-->
Ride Control
Optional -->
Rear Hydraulics
Optional <!-->
Horn
Standard -->

Tires

<!-->
S770 -->
<!-->
-->
