Specs

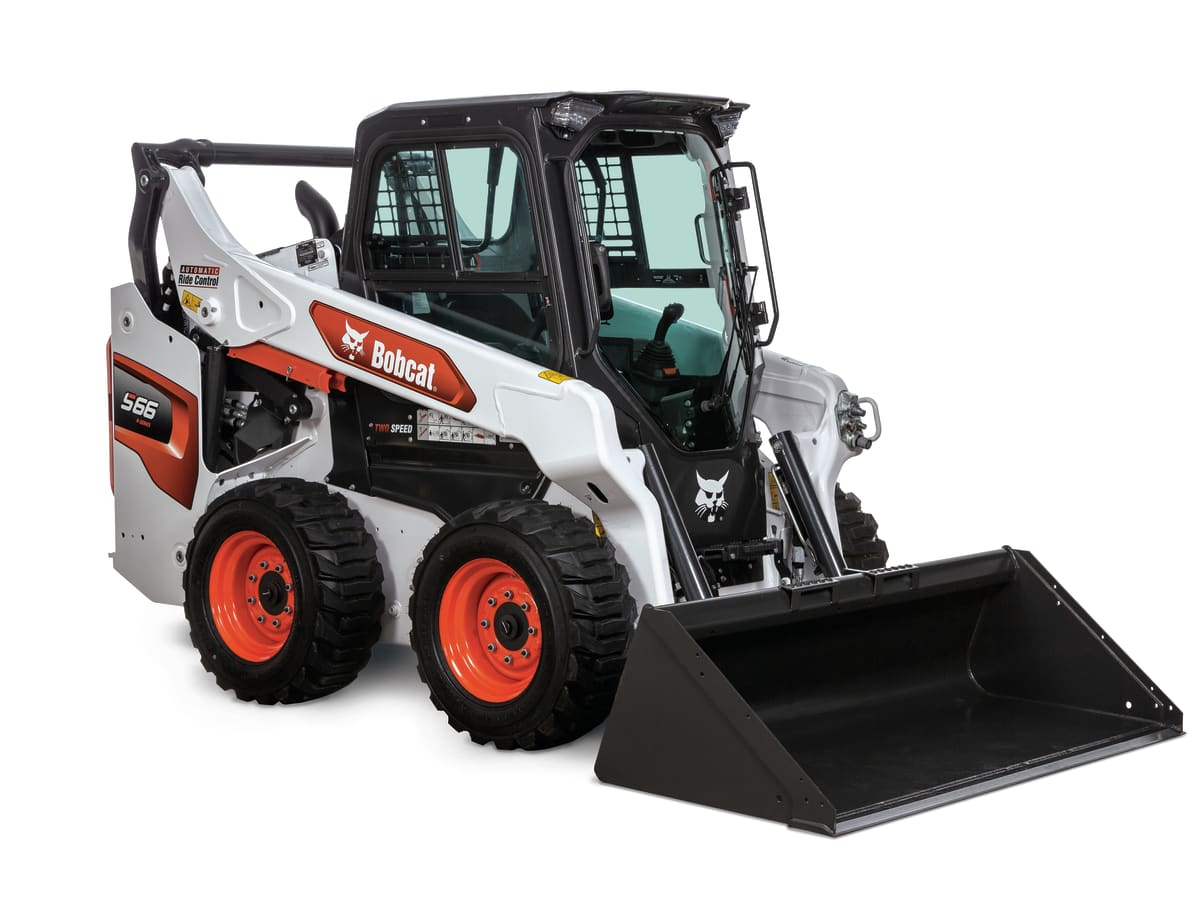

S66 Key Specifications
S66
Horsepower
74 hp
Rated Operating Capacity (ISO)
2,400 lb
Operating Weight
7154 lb
Auxiliary Std Flow
17.6 gal/min
Auxiliary High Flow
26.9 gal/min
Joystick Control
Optional
Engine
S66
Emissions Tier (EPA)
Tier 4
Engine Cooling
Liquid
Engine Fuel
Diesel
Horsepower
74 hp
Turbocharged Engine
yes
Horsepower Management
Included with SJC Option
Performance
S66
Rated Operating Capacity (ISO)
2,400 lb
Rated Operating Capacity 200 lb. Counterweight
2,550 lb
Tipping Load
4800 lb
Operating Weight
7154 lb
Travel Speed
7.4 mph
Travel Speed (2-speed option)
11 mph
Capacities
S66
Fuel Tank
28.3 gal
Hydraulic System
S66
Hydraulic System Pressure (Standard and High Flow)
3,500 psi
System Relief @ Quick Couplers
3,500 psi
Auxiliary Std Flow
17.6 gal/min
Auxiliary High Flow
26.9 gal/min
Dimension
S66
Length
135 in
Length without Attachment
107 in
Length with Standard Bucket
135 in
Width
67 in
Width (with bucket)
68 in
Height
80.5 in
Height with Operator Cab
80.5 in
Height to Bucket Hinge Pin
120 in
Reach @ Maximum Height
34.2 in
Turning Radius
80.1 in
Wheelbase
44.6 in
Features
S66
Joystick Control
Optional
Air Conditioning
Optional
Adjustable Seat
Standard
Backup Alarm
Standard
BICS System (Interlock)
Standard
Cab Enclosure
Optional
Sound Option
Optional
Cab Heater
Optional
Operating Lights
Standard
LED Front and Rear Lights
Standard
Standard Display (includes keyless start)
Standard
Speed Management
Included with SJC Option
Parking Brake
Wedge Brake System
Radio
Optional
Rear Window
Standard
Top Window
Standard
Lift-Arm Support
Standard
Seat Belt
Standard
Suspension Seat
Standard
Heated Cloth Air-Ride Seat
Optional
Two Speed Travel
Standard
Deluxe Instrumentation
Not Applicable
Engine Shutdown
Standard
Hydraulic Bucket Positioning
Not Applicable
Dual-Direction Bucket Positioning
Optional
High Flow Option
Optional
Auxiliary Hydraulics
Standard
Spark Arrestor Muffler
DOC
Bob-Tach Attachment System
Standard
Power Bob-Tach
Optional
ACS (Switchable Controls)
Not Applicable
Ride Control
Optional
Radio Remote Control (SJC Required)
Optional
Reversing Fan
Optional
Rear Hydraulics
Optional
Horn
Standard
Tires
S66
