Specs

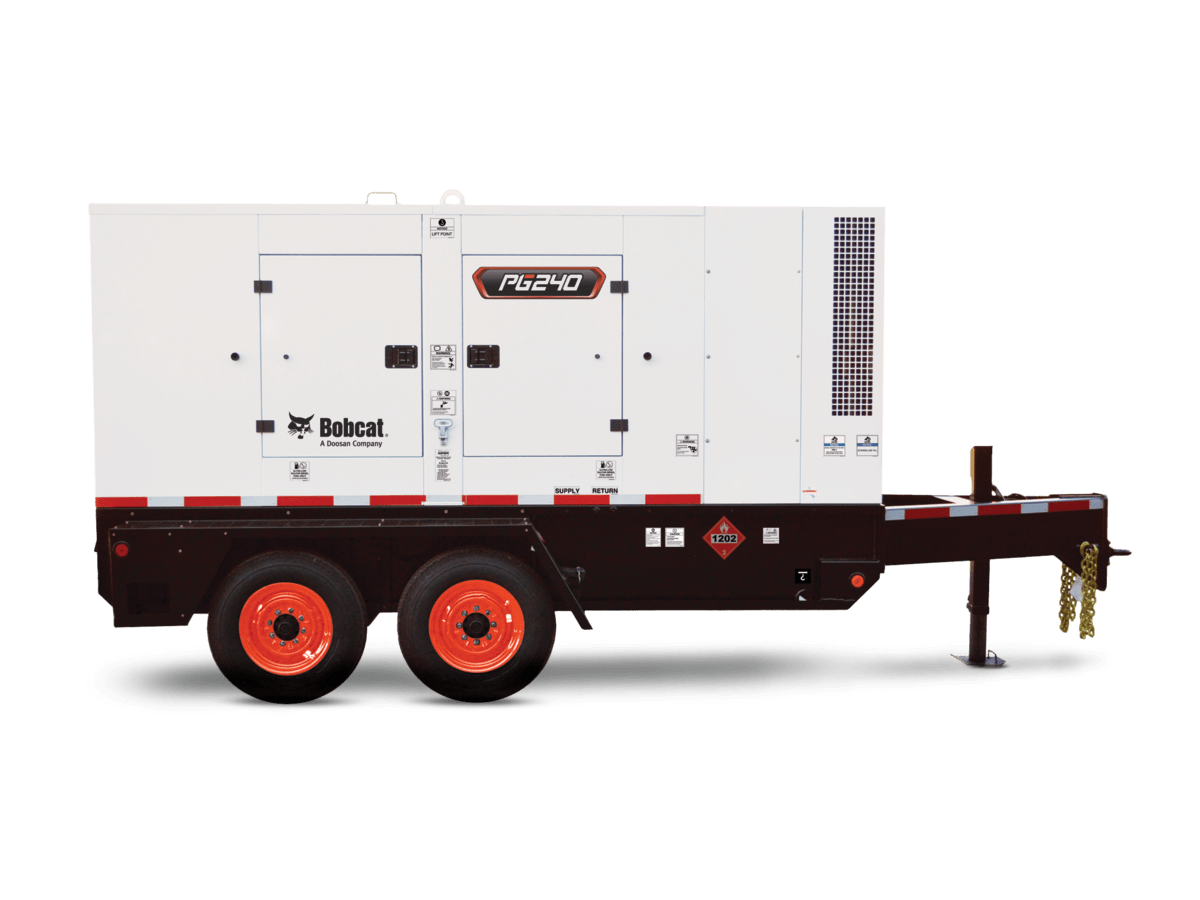

PG240 Key Specifications
PG240
Runtime Hours @ 75% Load
35.5
Power Output @ 1800RPM
282 hp
Engine
PG240
Engine Make
Cummins
Displacement
6.7 l
Emissions Tier Level
Tier 4 Final
Aftertreatment Technology
DOC / SCR
Capacities
PG240
Diesel Exhaust Fluid (DEF) Capacity
24 gal
Fuel Tank Capacity
368 gal
Dimensions
PG240
Length
224 in
Width
83.2 in
Height
102.9 in
Prime Power Rating
PG240
@ 480V-3-phase, 0.8PF, 60Hz
236 kVA (189 kW), 284 Amps
@ 240V-3-phase, 0.8PF, 60Hz
236 kVA (189 kW), 568 Amps
@ 208V-3-phase, 0.8PF, 60Hz
219 kVA (175 kW), 607 Amps
@ 240V-single-phase, 1.0PF, 60Hz
136 kVA (136 kW), 567 Amps
@ 120V-single-phase, 1.0PF, 60Hz
136 kVA (136 kW), 567 x 2 Amps
@ 400V-3-phase, 0.8PF, 50H
200 kVA (160 kW), 289 Amps
Voltage Configuration
Link Board
Runtime Hours @ 75% Load
35.5
Sound Level
69 dB(A)
Frequency Capability
50Hz/60Hz Switchable
Power Output @ 1800RPM
282 hp
