Specs
PG125 Key Specifications

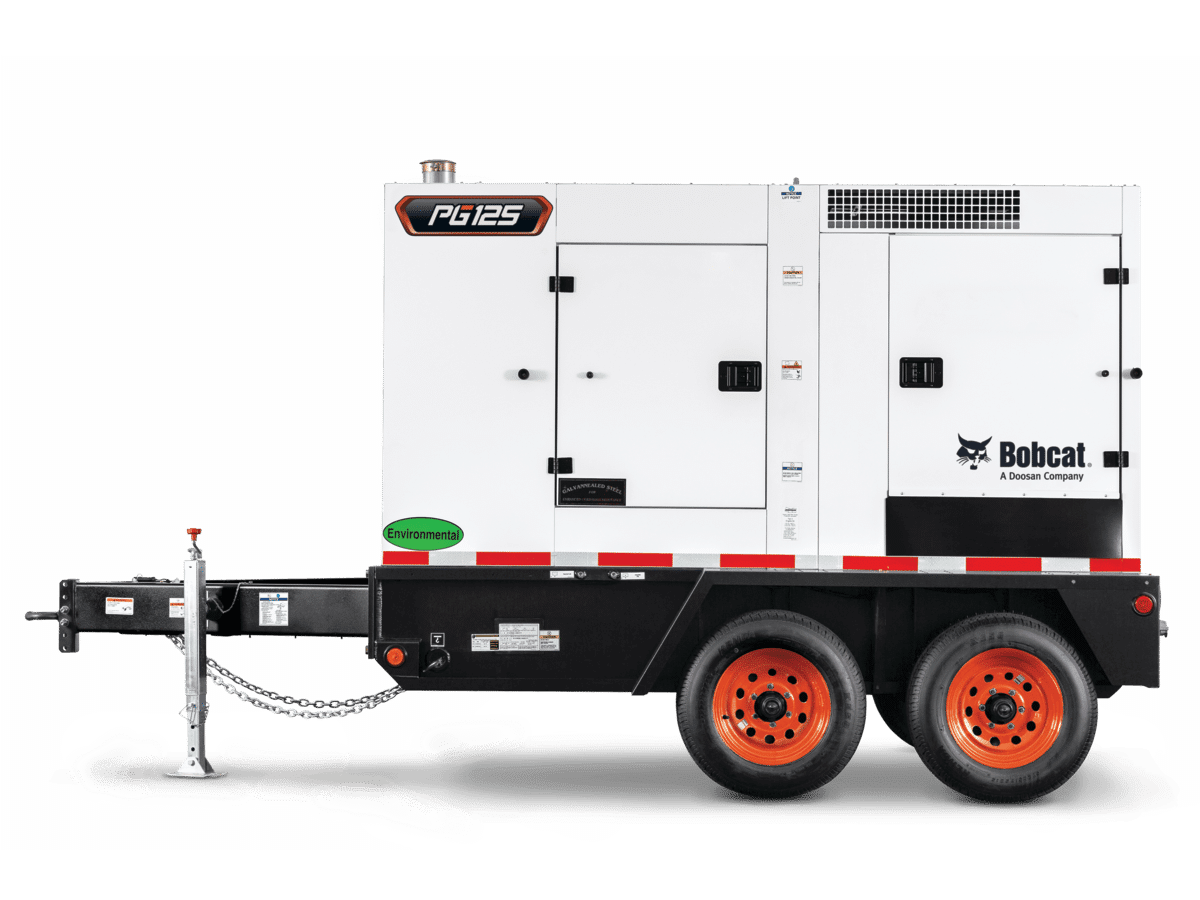

PG125
Runtime Hours @ 75% Load
32.4
Power Output @ 1800RPM
153 hp
Engine
PG125
Engine Make
Cummins
Displacement
4.5 l
Emissions Tier Level
Tier 4 Final
Aftertreatment Technology
DOC / SCR
Capacities
PG125
Diesel Exhaust Fluid (DEF) Capacity
24 gal
Fuel Tank Capacity
172 gal
Dimensions
PG125
Length
169.9 in
Width
71.3 in
Height
94.9 in
Prime Power Rating
PG125
@ 480V-3-phase, 0.8PF, 60Hz
125 kVA (100 kW), 151 Amps
@ 240V-3-phase, 0.8PF, 60Hz
125 kVA (100 kW), 301 Amps
@ 208V-3-phase, 0.8PF, 60Hz
121 kVA (97 kW), 336 Amps
@ 240V-single-phase, 1.0PF, 60Hz
86 kVA (86 kW), 360 Amps
@ 120V-single-phase, 1.0PF, 60Hz
86 kVA (86 kW), 360 x 2 Amps
@ 400V-3-phase, 0.8PF, 50H
105 kVA (84 kW), 152 Amps
Voltage Configuration
3-Position Switch
Runtime Hours @ 75% Load
32.4
Sound Level
68 dB(A)
Frequency Capability
50Hz/60Hz Switchable
Power Output @ 1800RPM
153 hp
