Specs

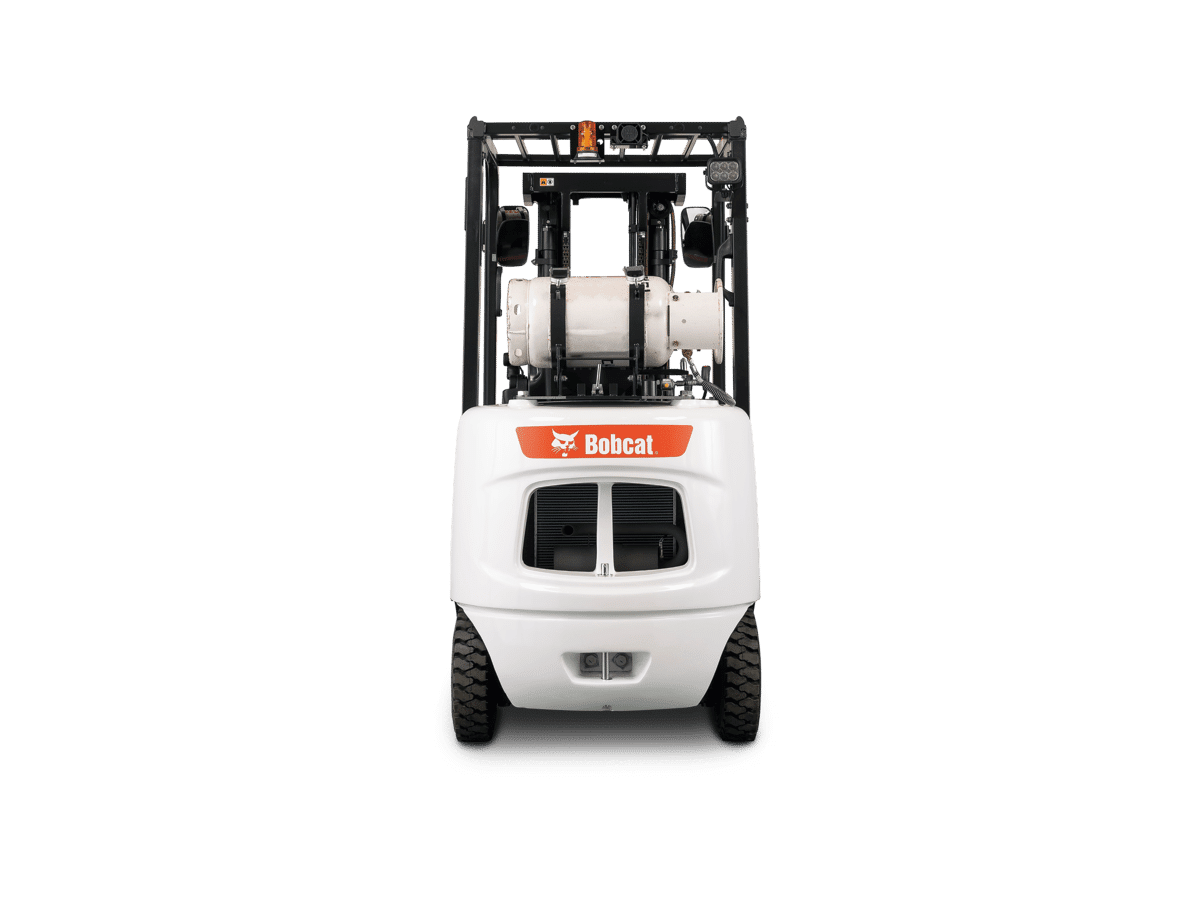

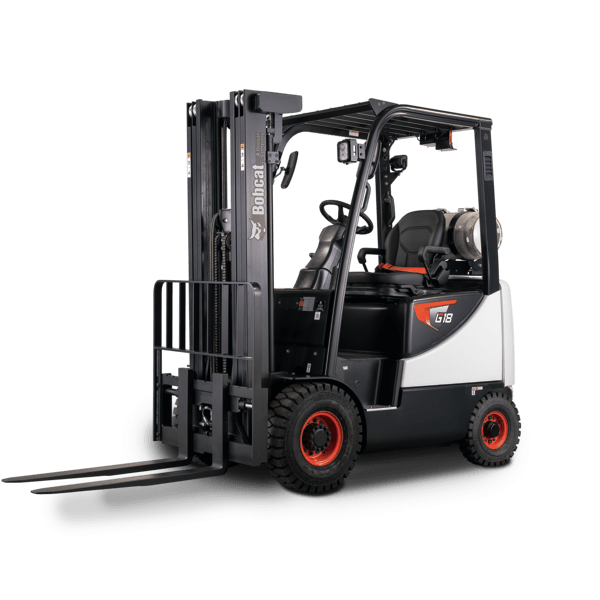

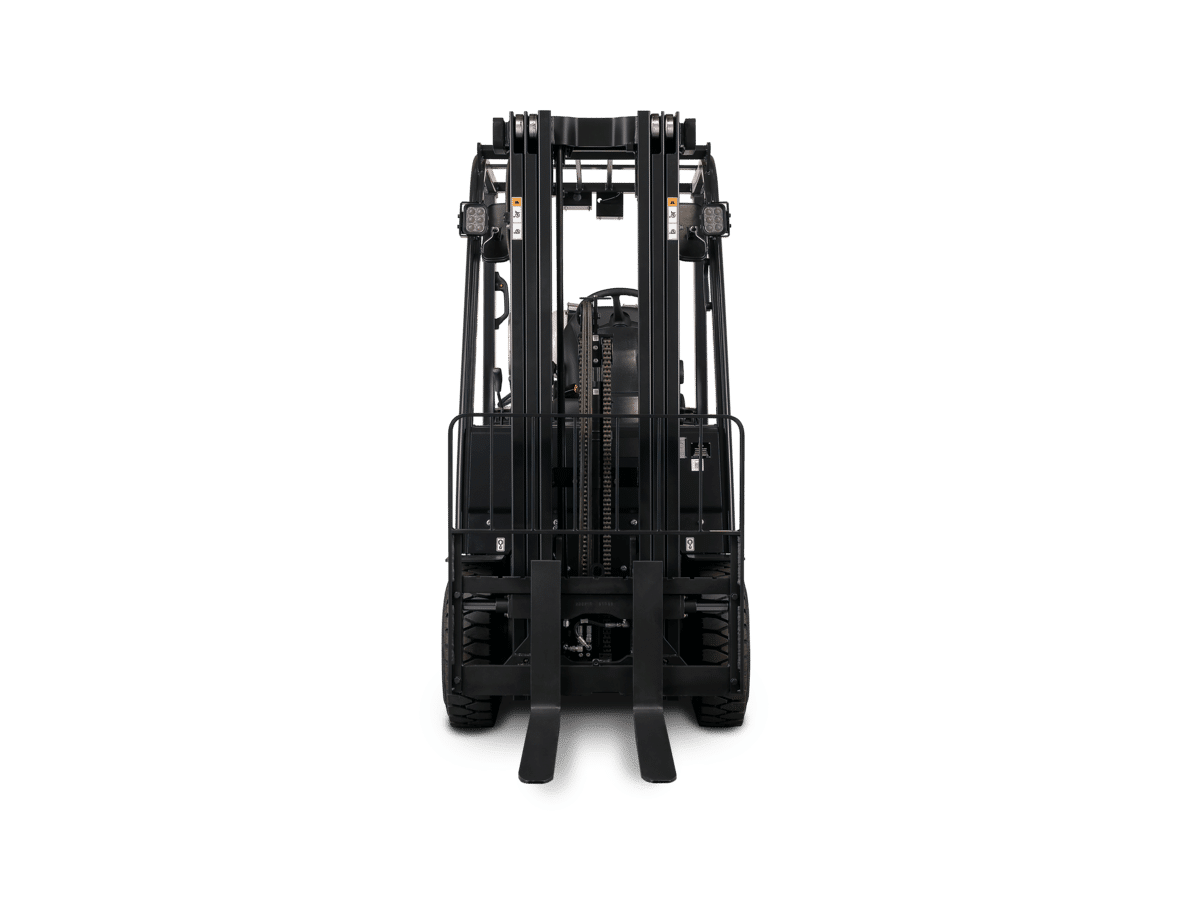

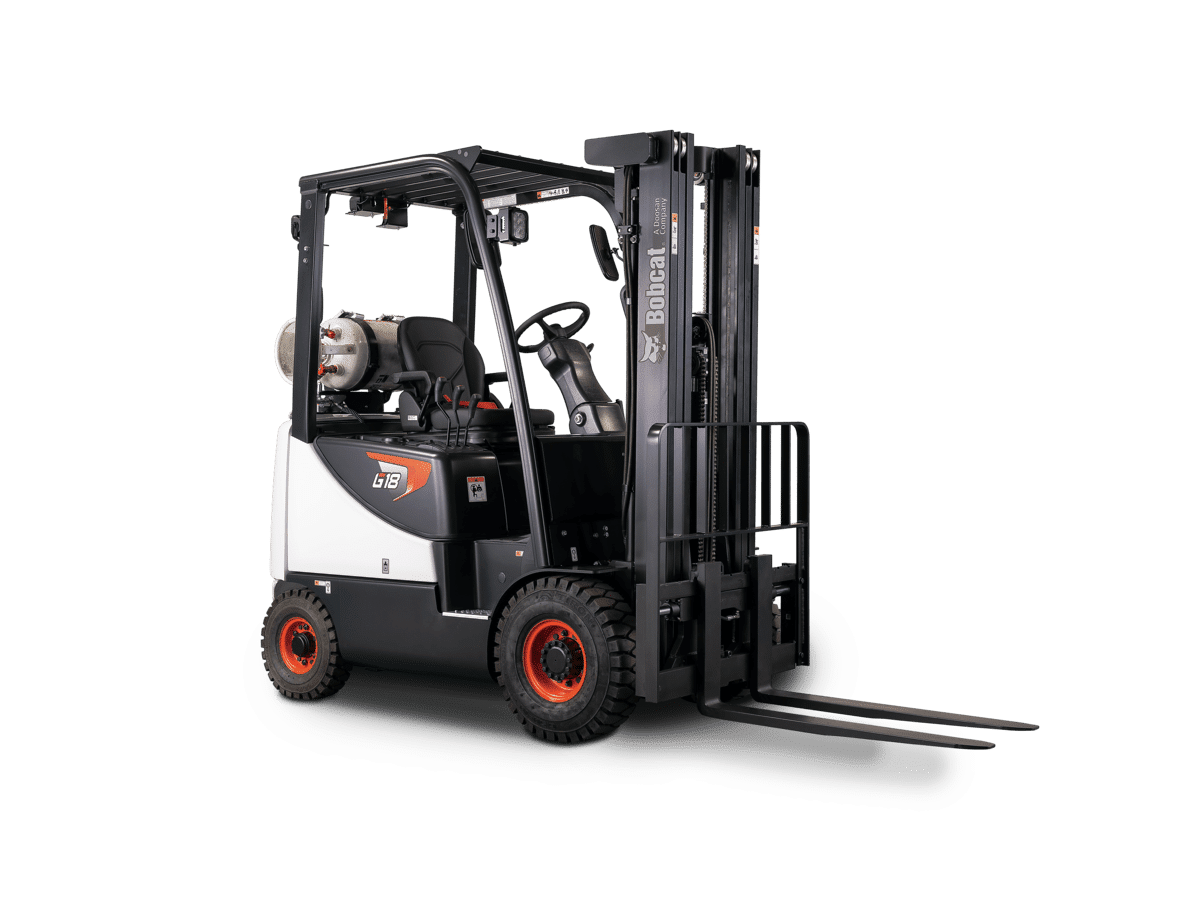

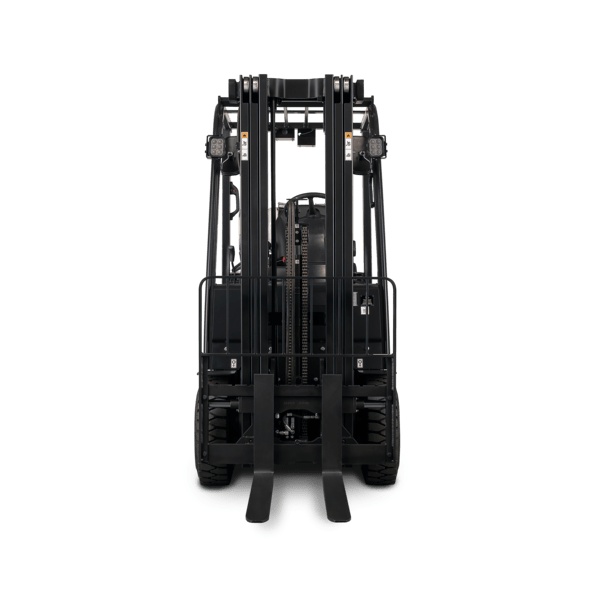

Small-Capacity LPG Pneumatic Tire Forklifts Key Specifications
G15S-5
G18S-5
G20C-5
Max Load Capacity
3000 lbs
3500 lbs
4000 lbs
BobQuote
G15S-5
G18S-5
G20C-5
Engine
G15S-5
G18S-5
G20C-5
Engine Model
HMC2.4
HMC2.4
HMC2.4
Performance
G15S-5
G18S-5
G20C-5
Load Center
24 in
24 in
24 in
Travel Speed - Loaded
11.2 mph
11.2 mph
11.2 mph
Travel Speed - Unloaded
11.8 mph
11.8 mph
11.8 mph
Lift Speed - Loaded
23.6 ft/min
23.6 ft/min
23.6 ft/min
Lift Speed - Unloaded
25.6 ft/min
25.6 ft/min
25.6 ft/min
Max Load Capacity
3000 lbs
3500 lbs
4000 lbs
Machine Rated Capacity
3000 lbs
3500 lbs
4000 lbs
Capacities
G15S-5
G18S-5
G20C-5
Ground Clearance Loaded
4.7 in
4.7 in
4.7 in
Ground Clearance Unloaded
5.9 in
Dimension
G15S-5
G18S-5
G20C-5
Load Management Center
15.5 in
15.5 in
15.7 in
Height - Mast Lowered
86 in
86 in
86 in
Overhead Guard Height
85.4 in
85.4 in
85.4 in
Free Lift
5.3 in
5.3 in
5.3 in
Length
120.8 in
122.6 in
124 in
Wheelbase
55.1 in
55.1 in
55.1 in
Price
G15S-5
G18S-5
G20C-5
Additional Product Information
G15S-5
G18S-5
G20C-5
Electrical System
G15S-5
G18S-5
G20C-5
Rated power
50.15 hp
50.15 hp
50.15 hp
DIV Specs
G15S-5
G18S-5
G20C-5
Width
42.1 in (1070 mm)
Outside Turning Radius
80.7 in
