Specs
E19e Key Specifications
E19e
Battery Type
Lithium Ion
System Voltage
51.8 V
Gross Battery Capacity
17.28 kW·h
Maximum Dig Depth
101 in
Maximum Reach at Ground Level
165.9 in
Operating Weight
4,212 lb
Width
38.6 in
Electrical System
E19e
Battery Type
Lithium Ion
System Voltage
51.8 V
Gross Battery Capacity
17.28 kW·h
Interior Sound Level According to ISO 6396
71 dB
External Sound Level According to ISO 6395
81 dB
Estimated Run Time
4 h

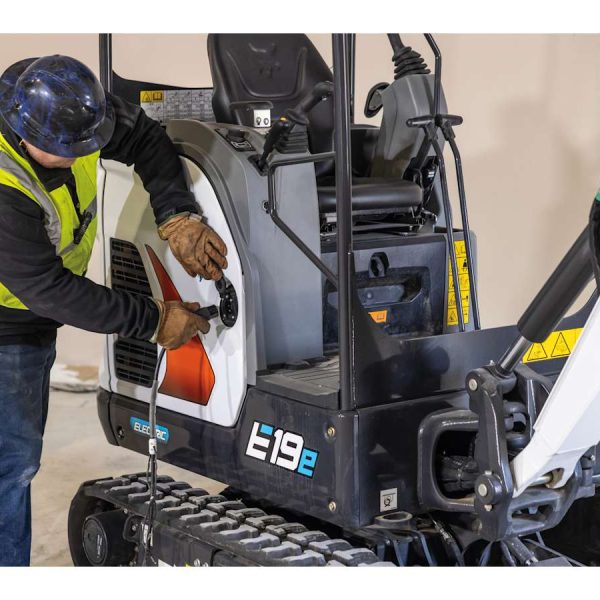

On-Board Charge Time - 120V
10-12 h
On-Board Charge Time - 240V
10-12 h
Off-Board Charge Time
2 h
Engine
E19e
Performance
E19e
Travel Speed - High
2.3 mph
Travel Speed - Low
1.1 mph
Arm Digging Force
2,086 lbf
Bucket Digging Force
4,684 lbf
Rated Lift Capacity
1028 lb
Lift Radius
118 in
Boom Swing - Left
80°
Boom Swing - Right
60°
Maximum Dig Depth
101 in
Max Dump Height
101 in
Maximum Reach at Ground Level
165.9 in
Operating Weight
4,212 lb
Weight Class
2 t
Hydraulic System
E19e
Auxiliary Std Flow
6.4 gal/min
Auxiliary Pressure
2,610 psi
Dimension
E19e
Length
150.1 in
Overall Length in Travel Position
150.1 in
Width
38.6 in
Height
90.5 in
Height with Operator Cab
90.5 in
Features
E19e
Air Conditioning
Not Applicable
Cab Enclosure
Not Applicable
Cab Heater
Not Applicable
Heater Air Conditioning
Not Applicable
Radio
Not Applicable
Tail Swing Type
Conventional
Auxiliary Hydraulics
Standard
Secondary Auxiliary Hydraulics
Standard
Quick Tach System
Not Applicable
Rubber Track
Standard
Selectable Auxiliary Hydraulic Flow
Not Applicable
Angle Blade
Not Applicable
On-Board Charger
Standard
Off-Board Charger
Optional
J1772 Charge Cable with NEMA 14-50 Plug
Not Applicable
NEMA 5-15 Charge Cable
Not Applicable
NEMA 14-50 Charge Cable
Not Applicable
